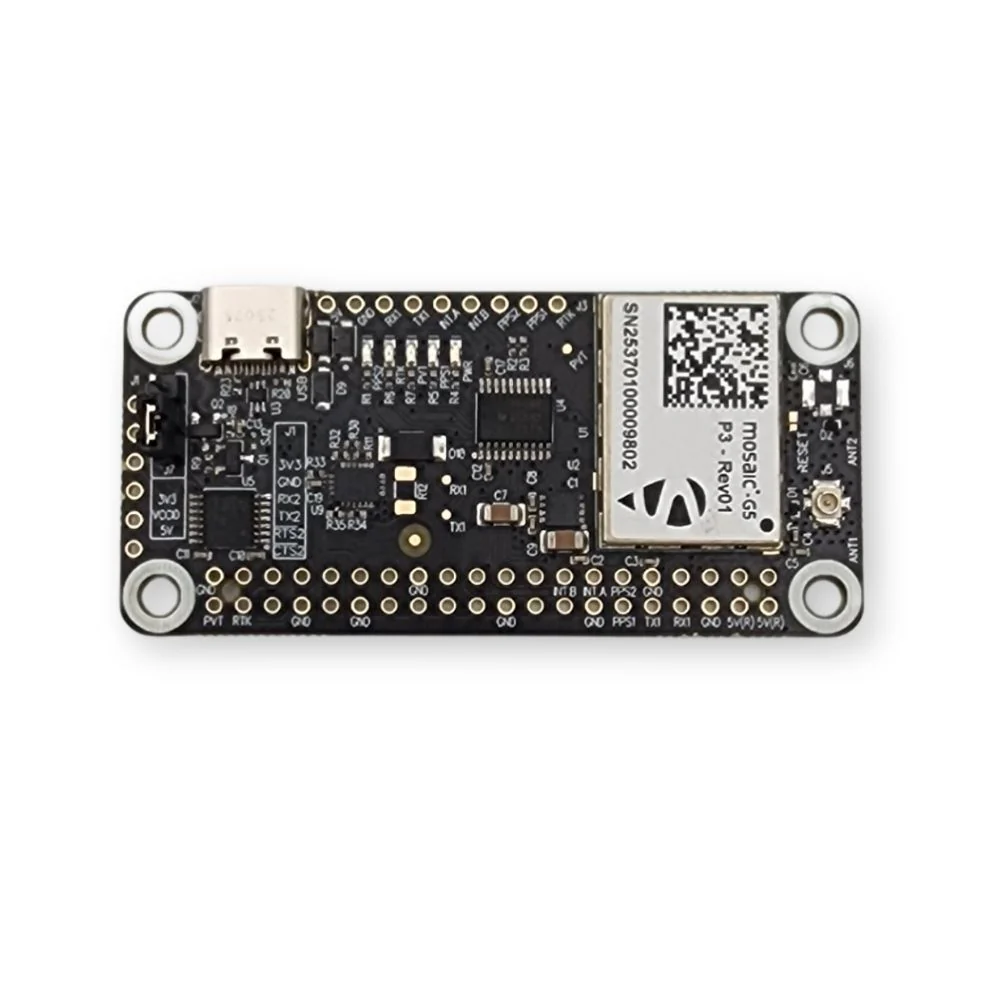

mosaic-G5 RTK GNSS Raspberry PI HAT
mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver.
mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.
APME+ a posteriori multipath estimator for code and phase multipath mitigation.
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring
HAT features:
- Raspberry PI 40 pin extension header, supports all Raspberry PI compatible boards and Jetson Nano
- USB C connector
- Antenna input with IPEX connector
- On board low noise 3.3 V voltage regulator
- On board voltage level translators for 5V compatibility
- Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
- ELT_RtkBase full-featured software
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Supports onboard battery holder for ML1220 rechargeable cell for long backup applications
- Dimensions 65x30.5x10 mm
- Fully assembled and ready to use
- ELT_RTKBase User Guide
Original: $442.40
-65%$442.40
$154.84More Images
