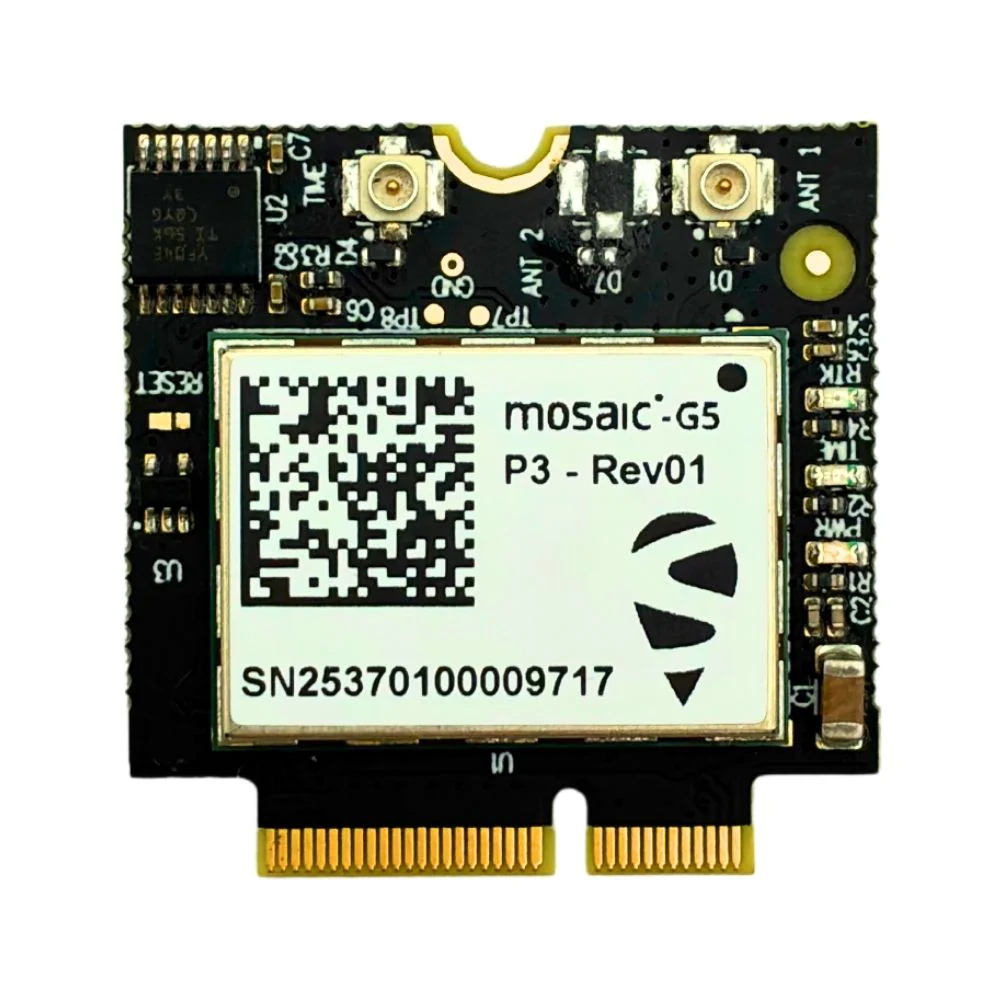

mosaic-G5 M.2 socket RTK GNSS receiver
mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver.
mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.
APME+ a posteriori multipath estimator for code and phase multipath mitigation.
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring

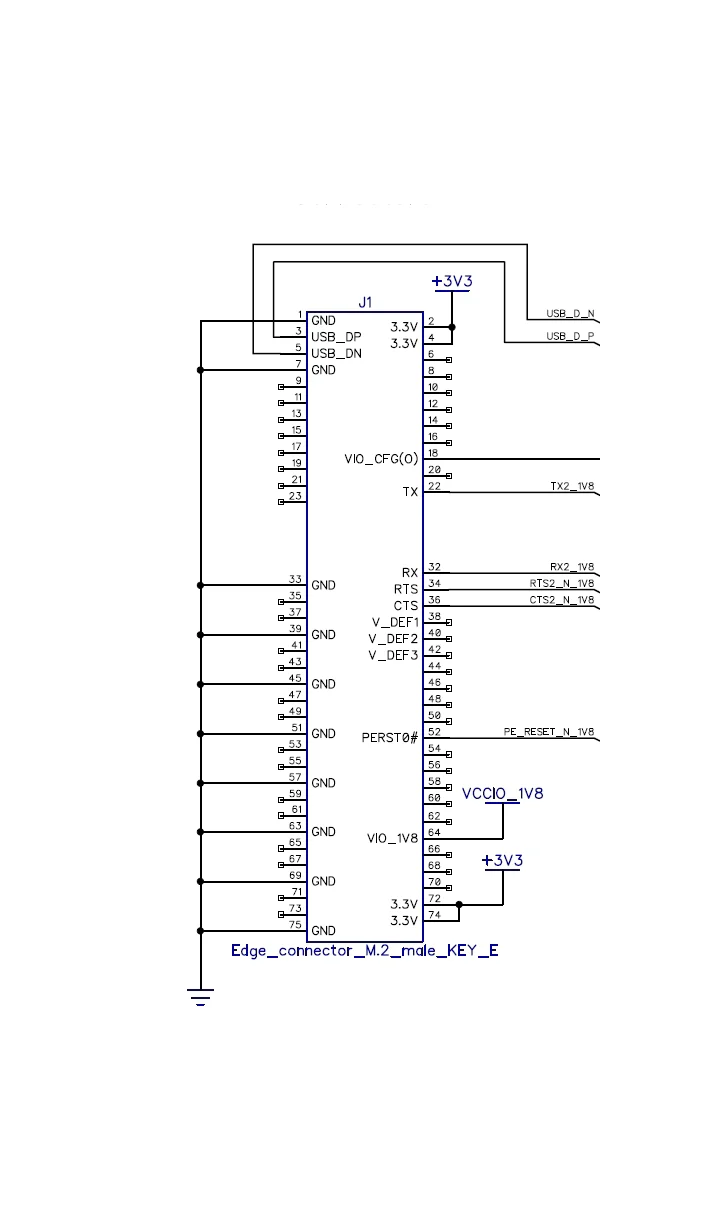

- M.2 2230 Key E compatible (Part of NGFF, Next Generation Form Factor)
- Antenna input with IPEX connector
- USB and UART with CTS/RTS interfaces used
- Time pulse LED: Green, Power LED: purple, RTK LED (GPIO1): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 22x30 mm
- Weight: 10 gr.
- Fully assembled and ready to use
WARNING: This module requires antennas with 3.0 V power supply, such as ELT0243
Original: $442.40
-65%$442.40
$154.84More Images
mosaic-G5 M.2 socket RTK GNSS receiver
mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver.
mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.
APME+ a posteriori multipath estimator for code and phase multipath mitigation.
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring
- M.2 2230 Key E compatible (Part of NGFF, Next Generation Form Factor)
- Antenna input with IPEX connector
- USB and UART with CTS/RTS interfaces used
- Time pulse LED: Green, Power LED: purple, RTK LED (GPIO1): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 22x30 mm
- Weight: 10 gr.
- Fully assembled and ready to use
WARNING: This module requires antennas with 3.0 V power supply, such as ELT0243
