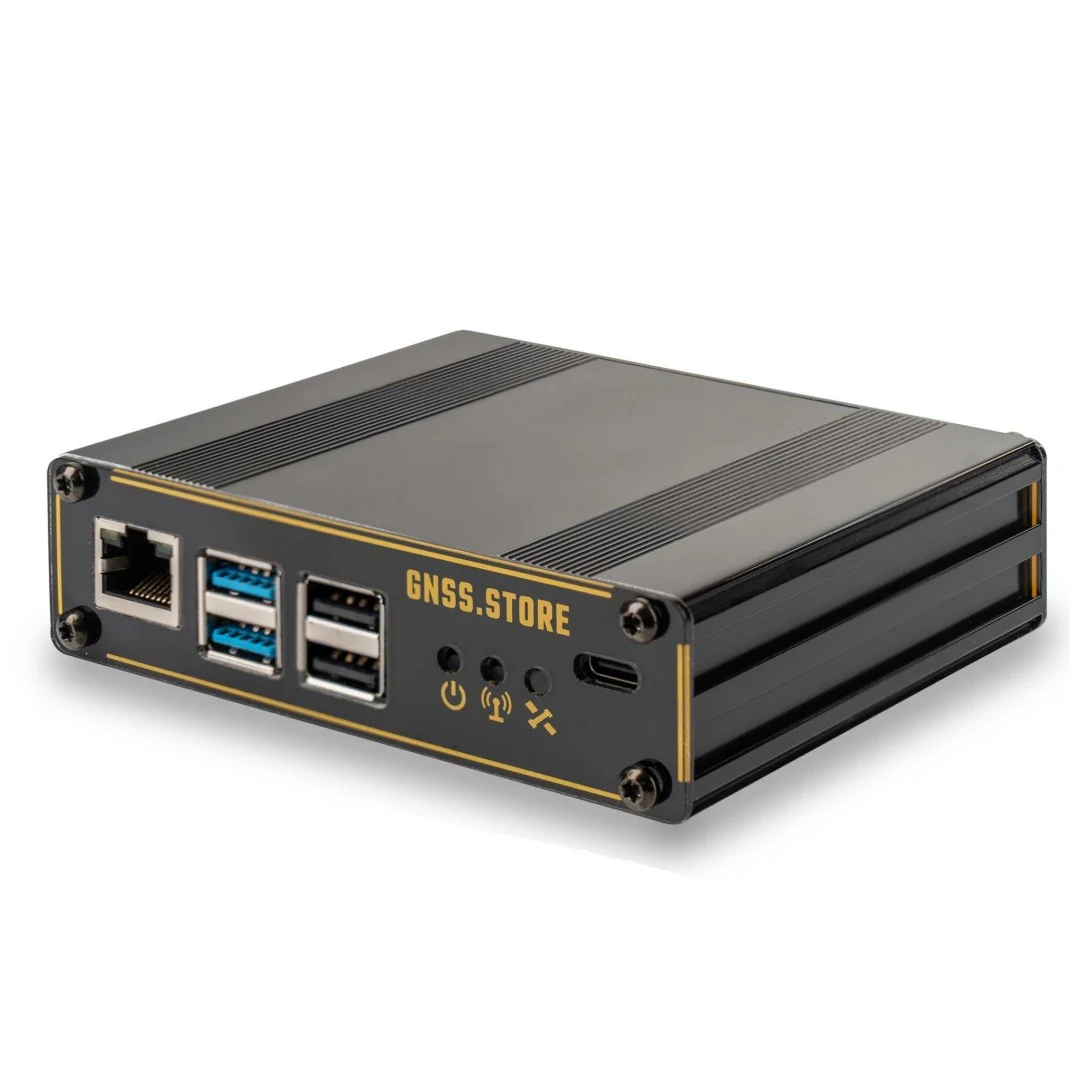

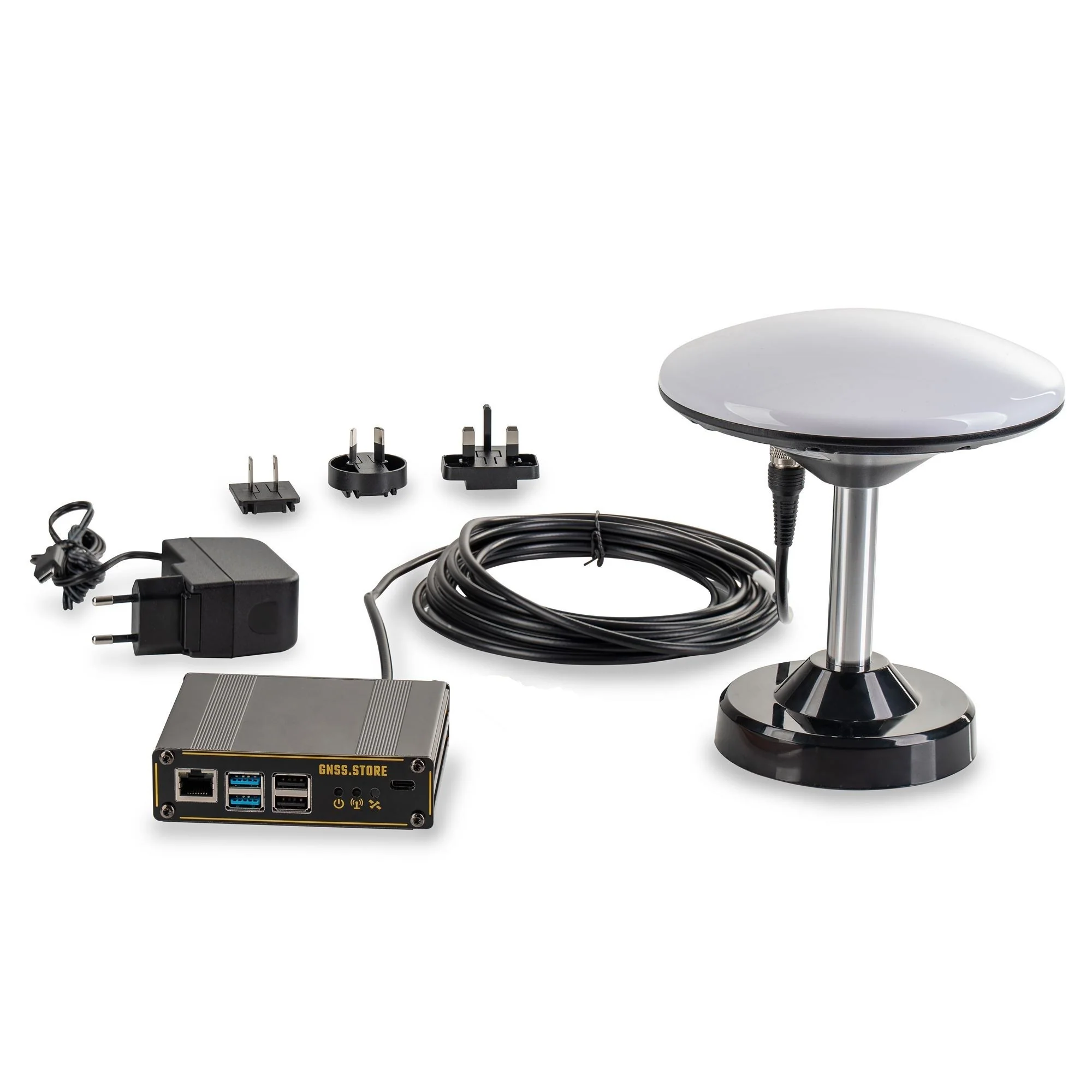

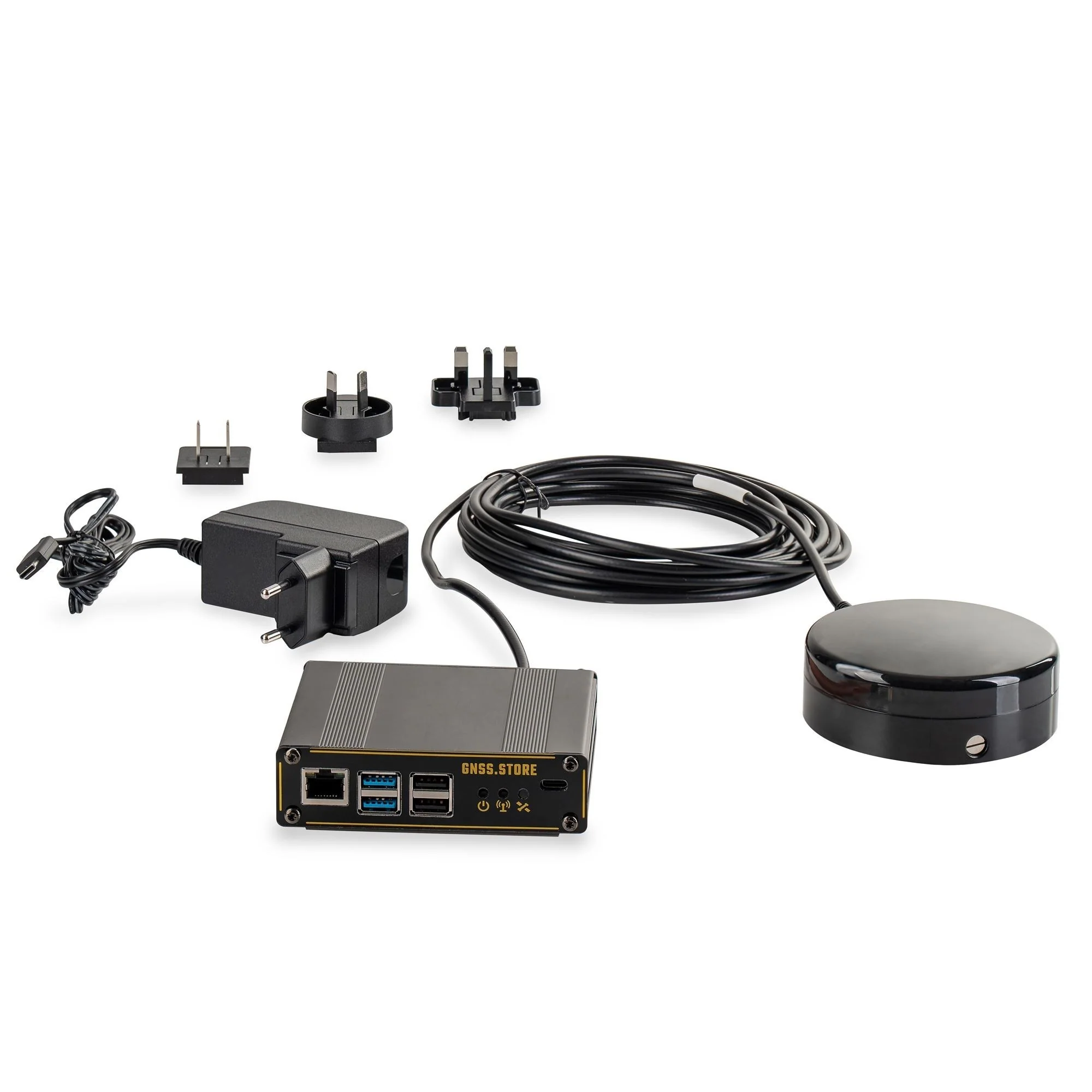

mosaic-T Linux Fanless Station
mosaic-T all-constellation multi-frequency top-performance high precision RTK GNSS receiver
mosaic-T high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms.
- Fanless setup, passive cooling
- Build-in RF splitter for direct connection in multi-receiver setup
- Raspberry-PI RPI4-MODBP-2GB
- BCM2711 SOC, ARM [email protected]
- WiFi 2.4 and 5GHz 802.11 b/g/n/ac, Bluetooth 5.0 BLE
- ELT_RtkBase full-featured software
- ELT_RTKBase User Guide
- microSD card 32GB with pre-installed software and documentation

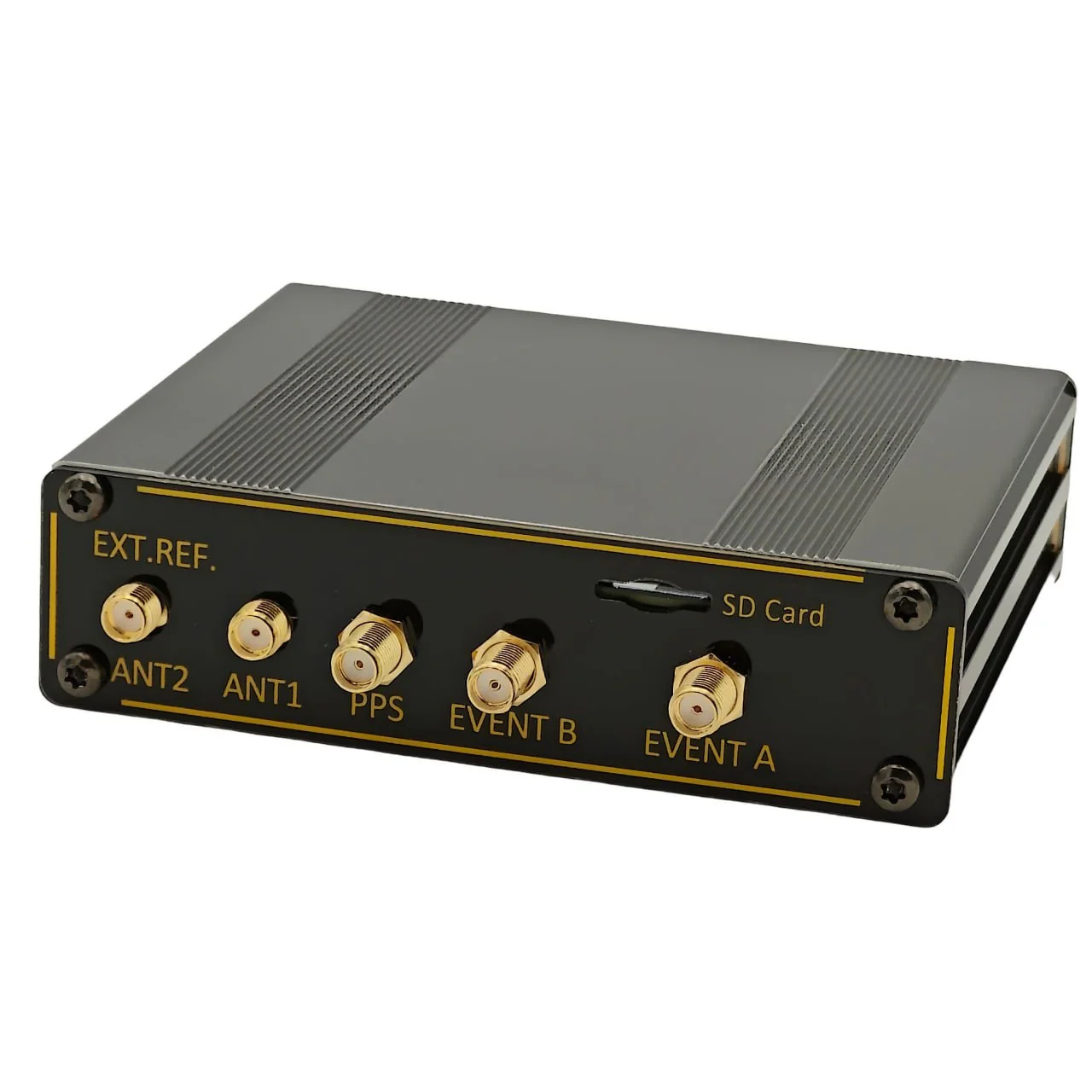

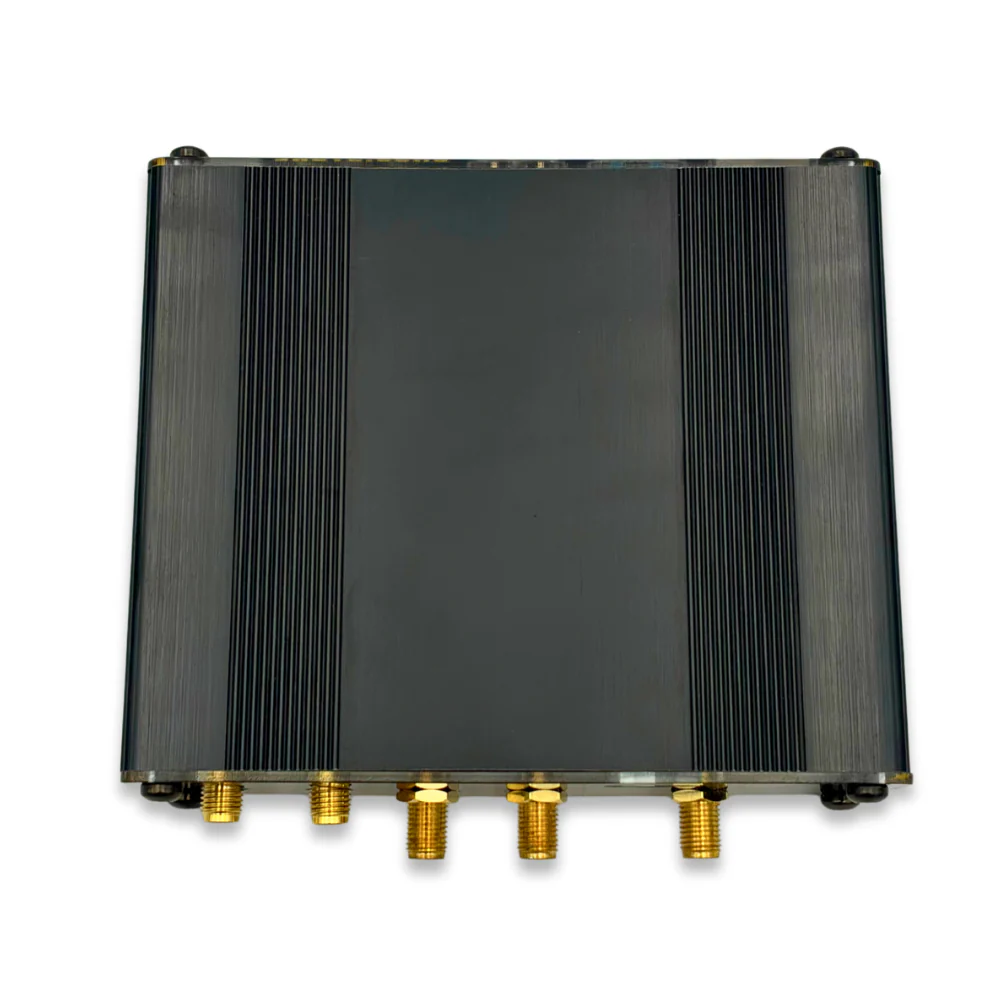

- GNSS antenna input with SMA connector
- Frequency reference input (10 MHz, 3.3V) with SMA connector (manual select)
- EVENTA, EVENTB protected external event inputs 3.3V on SMA connector
- PPS output 3.3V on SMA connector
- Gigabit Ethernet port with optional PoE support
- PoE is compliant with IEEE 802.3af-2003
- Time pulse LED, Ethernet LED
- Backup supercapacitor
- Dimensions 110x95x30 mm
- Weight: 245/265 g
- Fully assembled and ready to use
- Extensive mounting options - check accessories in the related products list
In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution. Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.
Original: $762.57
-65%$762.57
$266.90More Images
