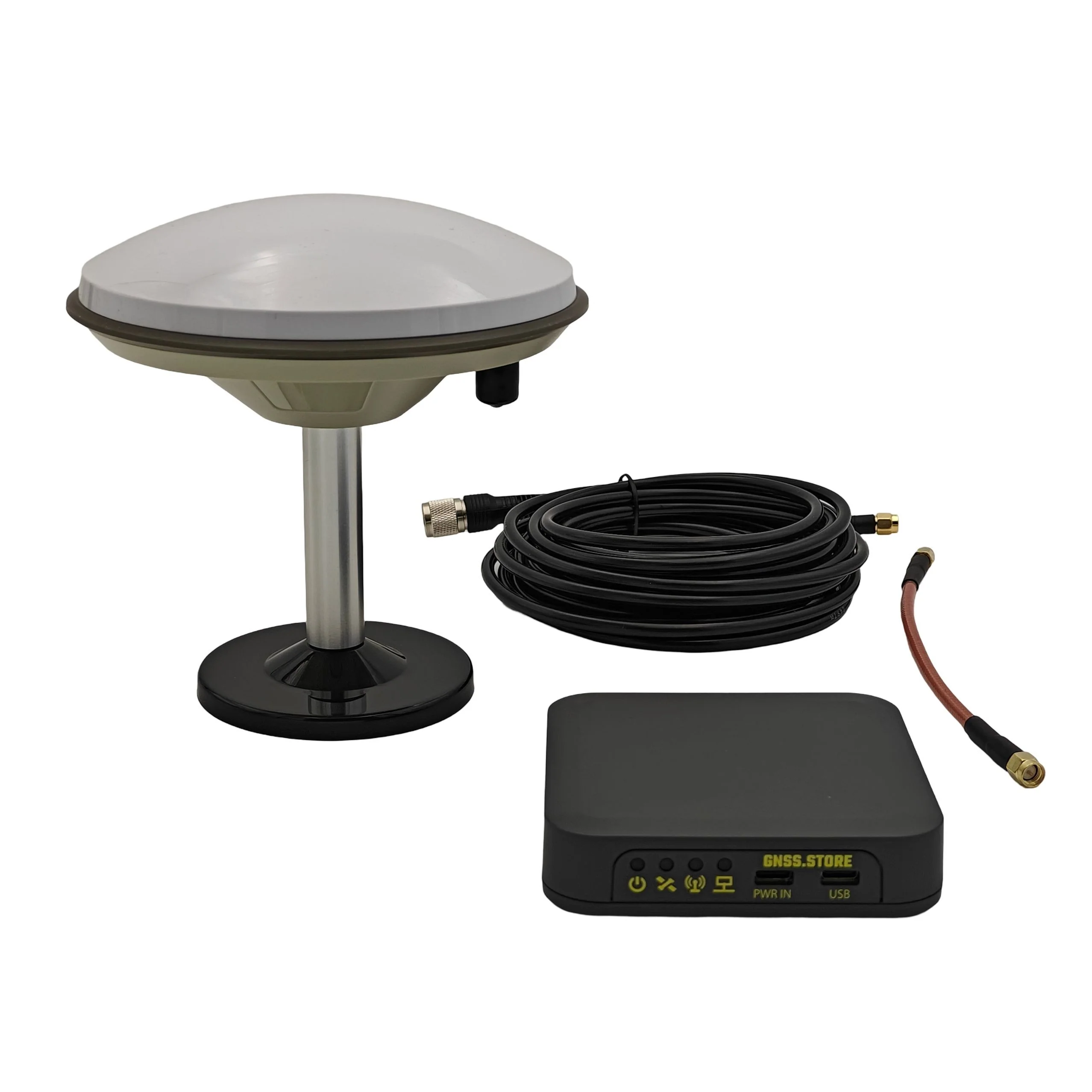

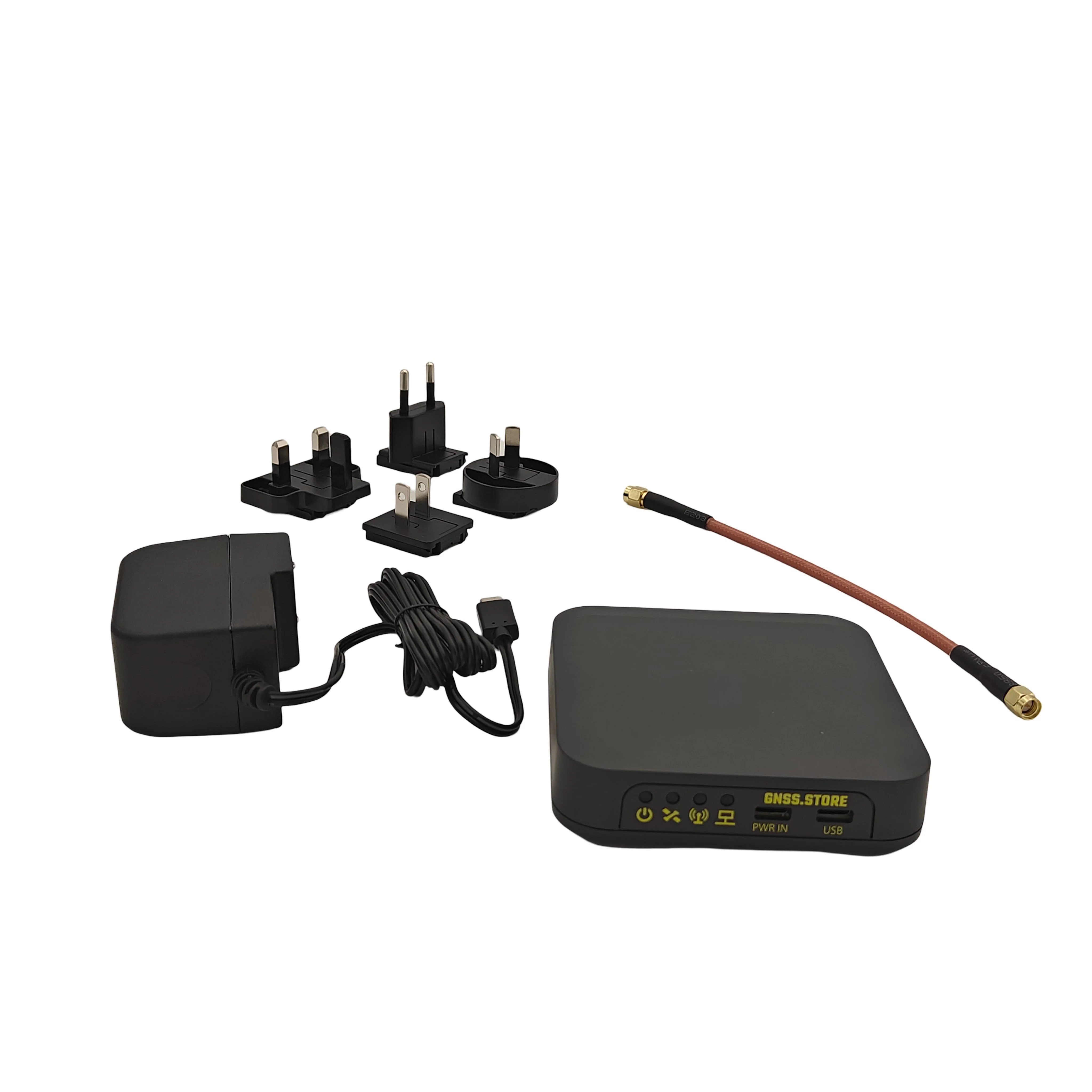

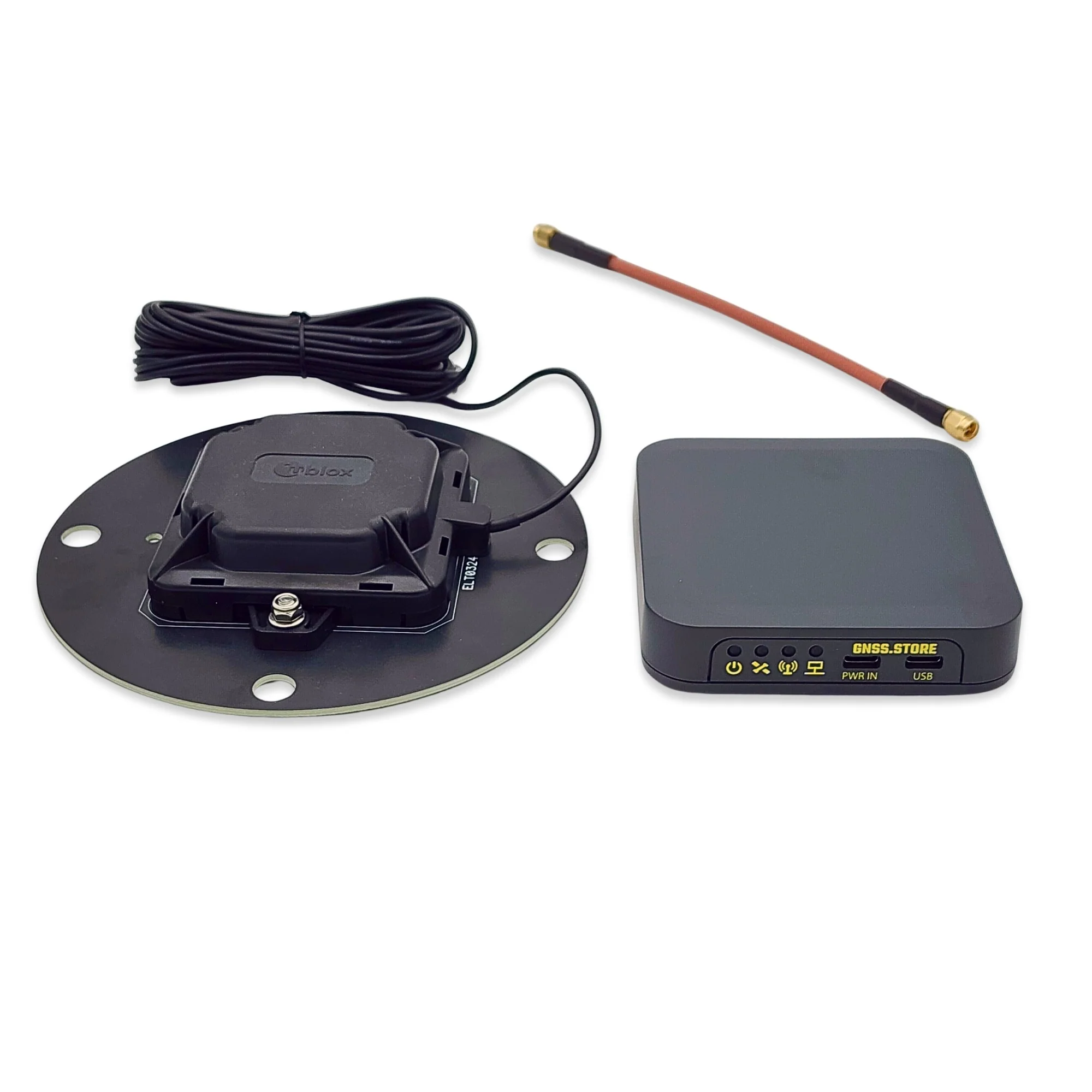

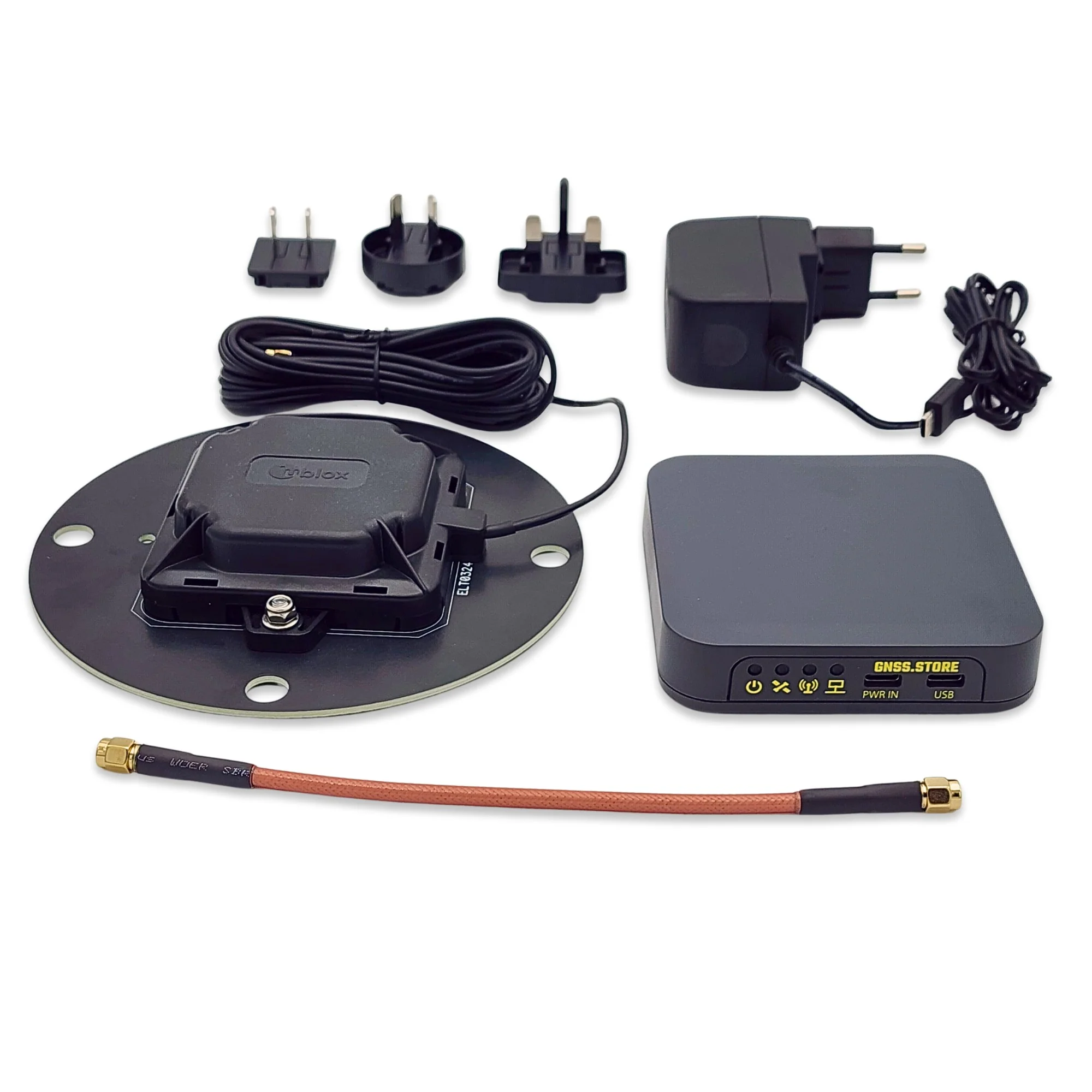

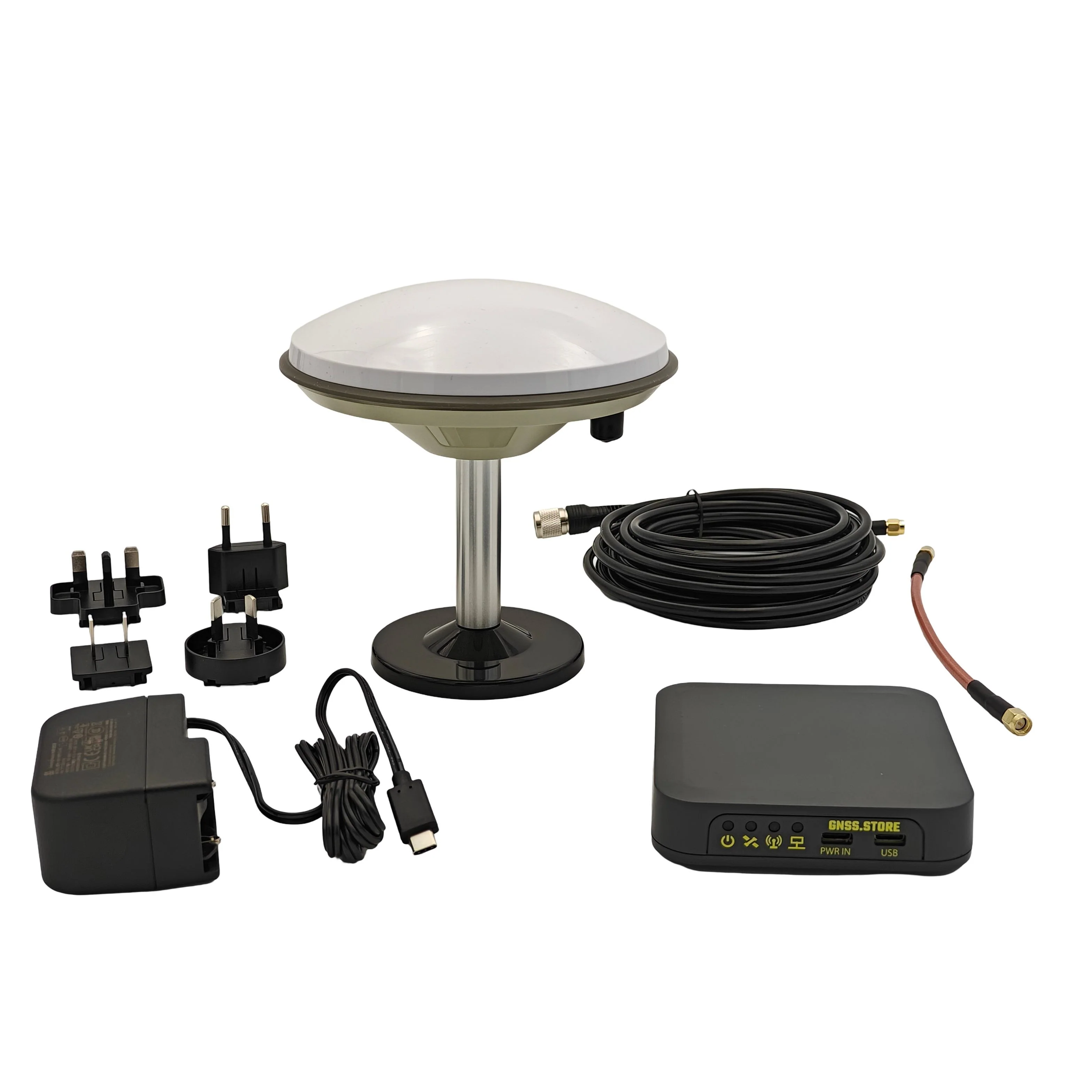

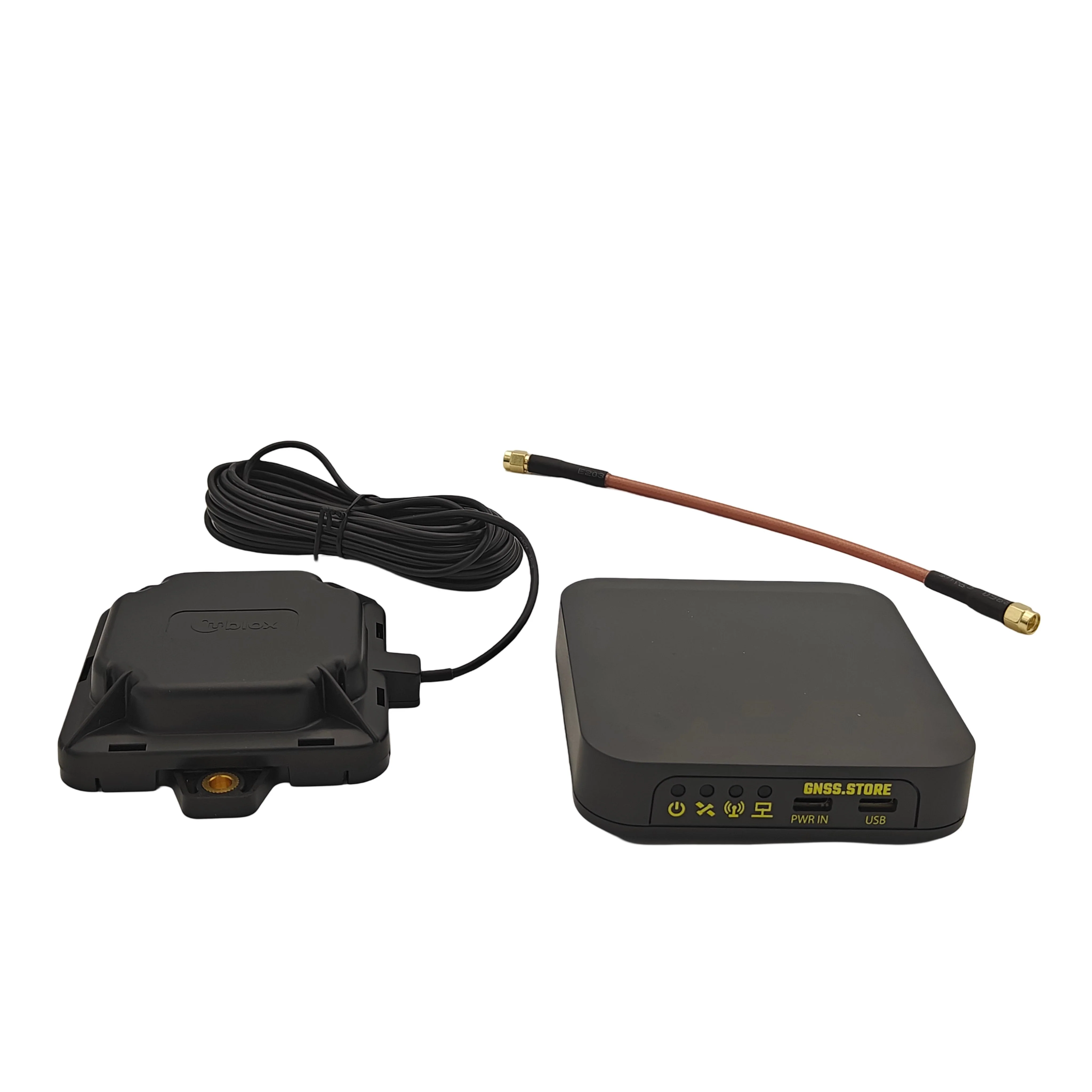

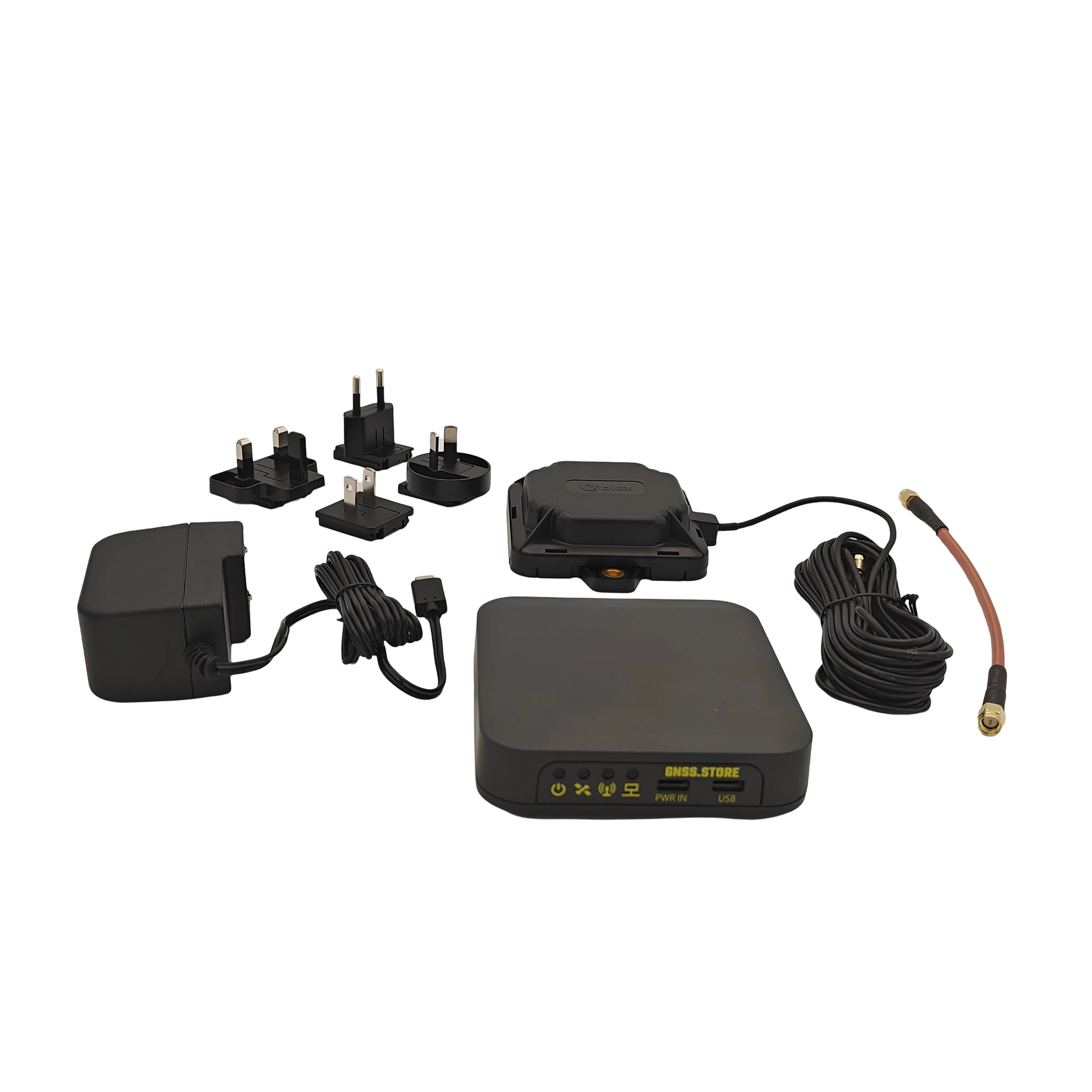

Onocoy mosaic-X5 high-precision GNSS Miner with support for other decentralized networks (built-in RF splitter)

mosaic X5 All-constellation Multi-frequency High Precision RTK GNSS receiver

mosaic-X5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms. In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation.

Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution. Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.

---

• Fanless setup, passive cooling
• Build-in RF splitter for direct connection in multi-receiver setup
• Raspberry-PI RPI Zero 2 W
• RP3A0 SoC, ARM Cortex-A53@1GHz
• WiFi 2.4 GHz 802.11n
• ELT_RtkBase full-featured software
• ELT_RTKBase User Guide
• microSD card 32GB with pre-installed software and documentation

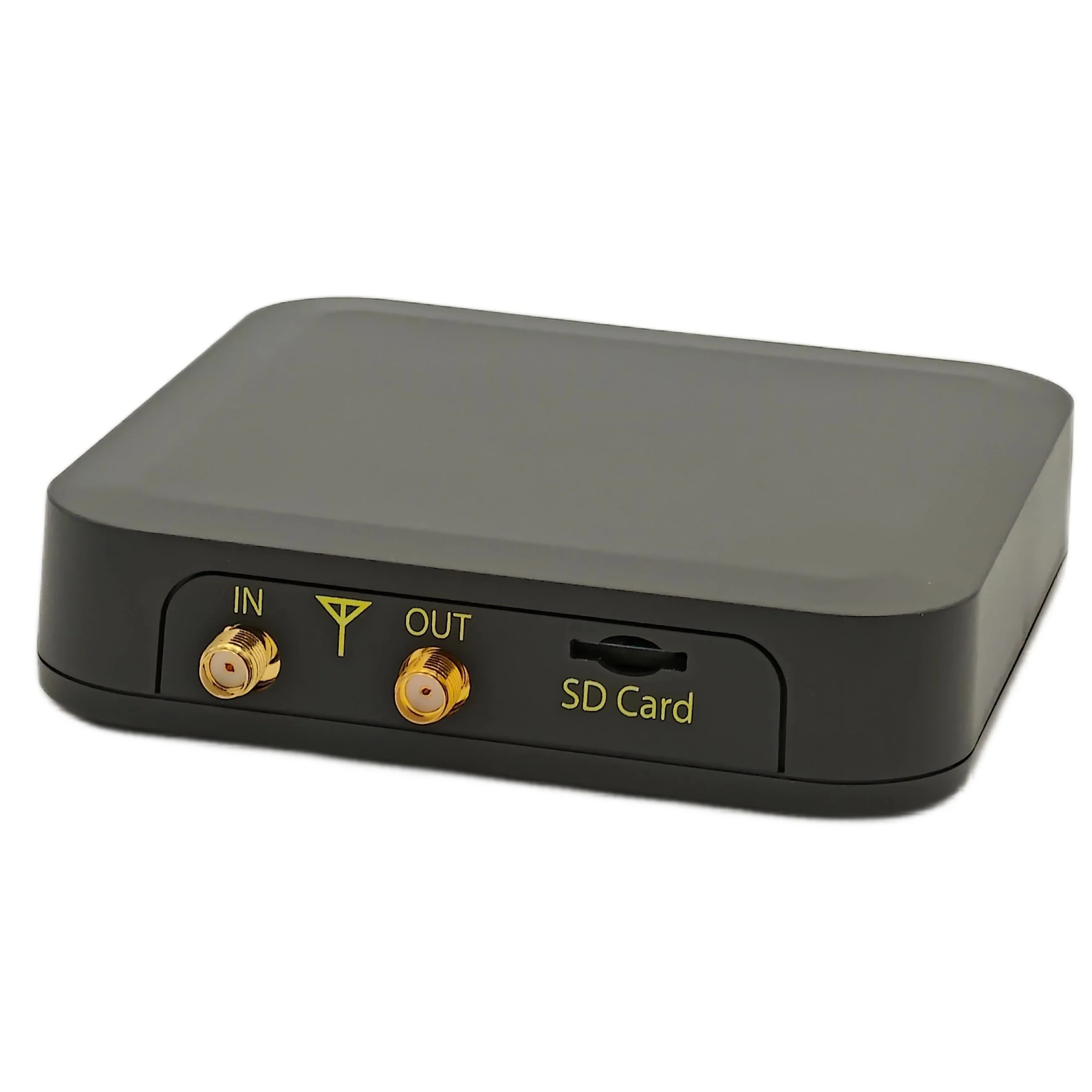

• GNSS antenna input with SMA connector

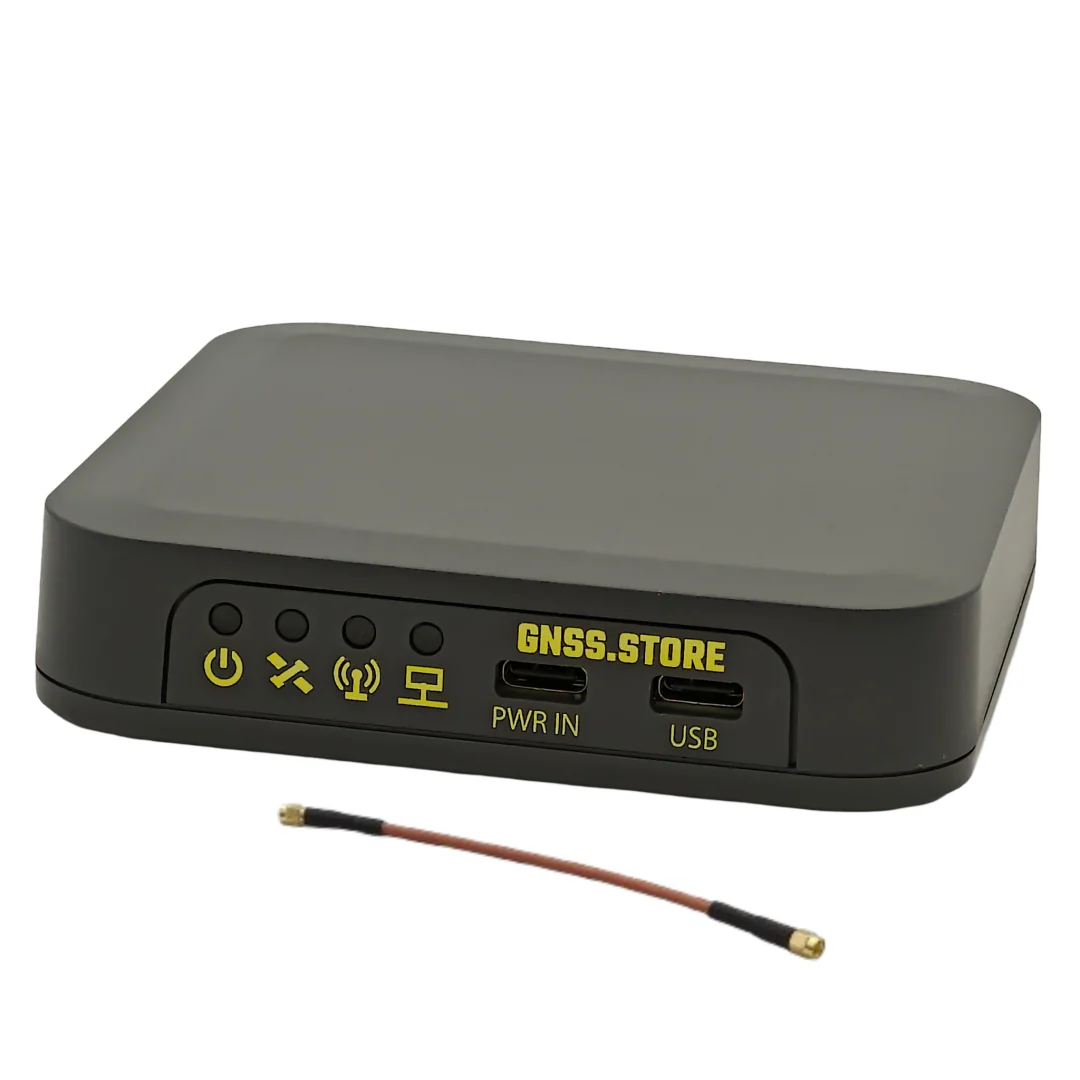

• USB C receiver port with access to 4 Mosiac serial ports, USB C power in port
• Power LED, GNSS LED, Internet LED and NTRIP LED
• Dimensions 100x100x22.5 mm
• Weight: 140 gr.
• Fully assembled and ready to use
