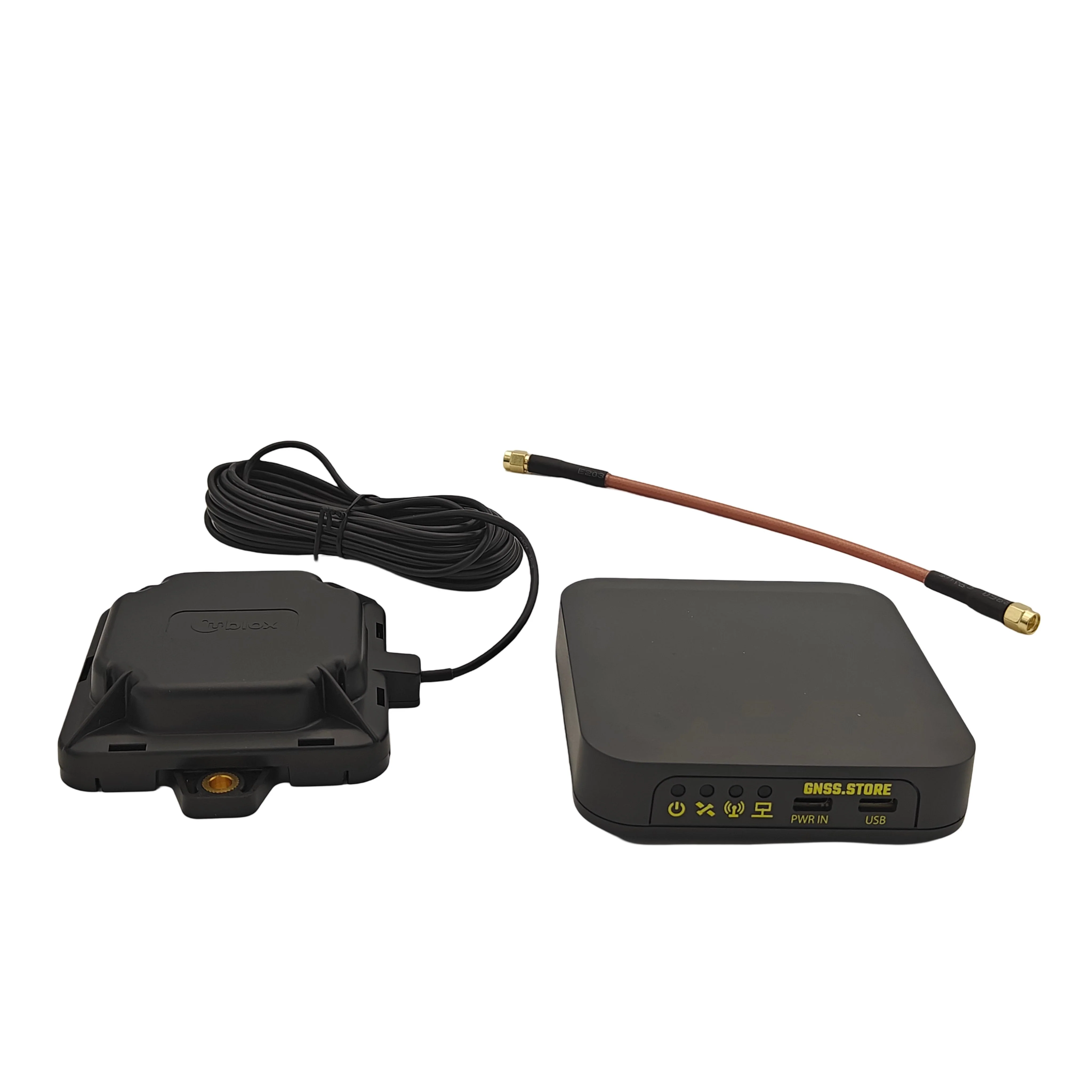

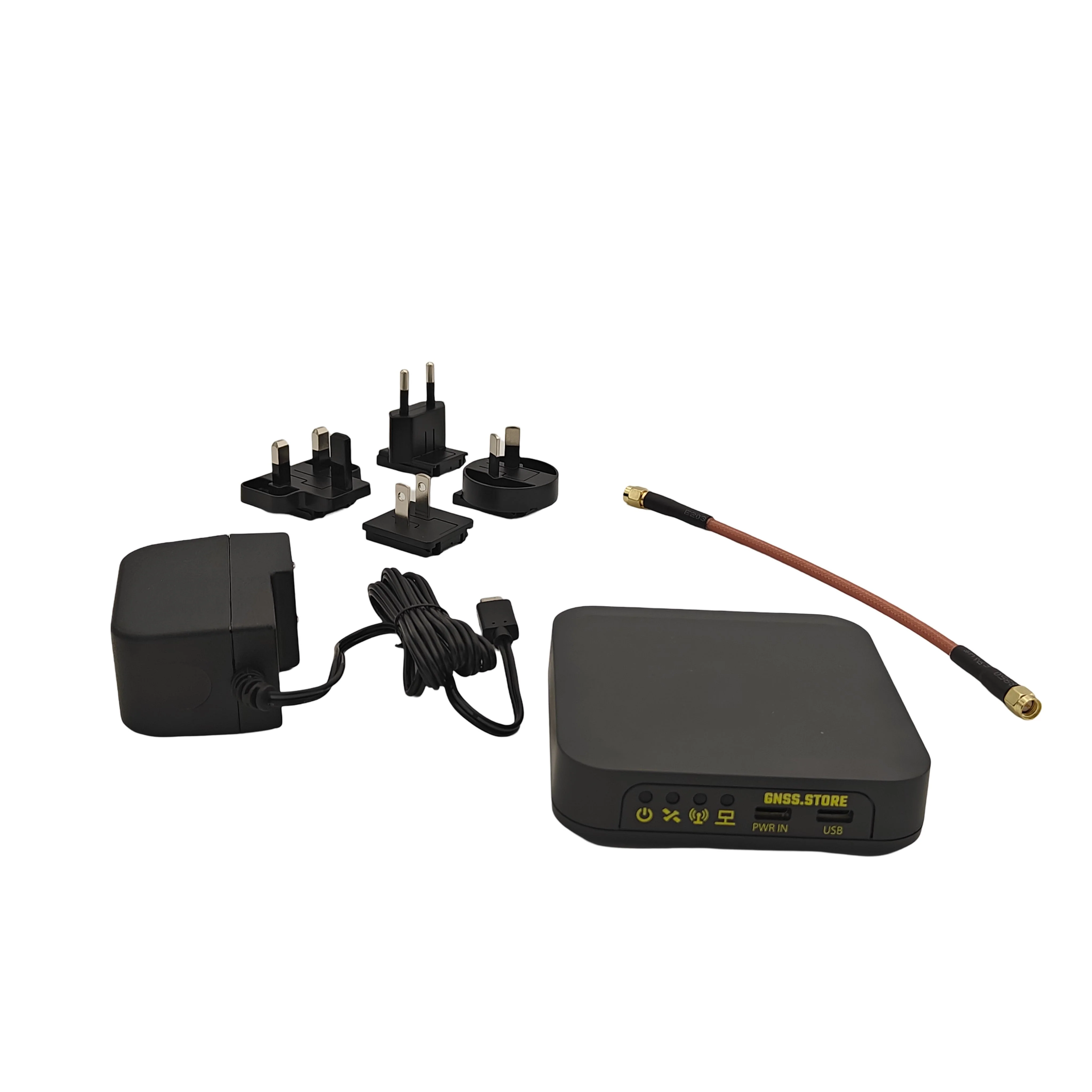

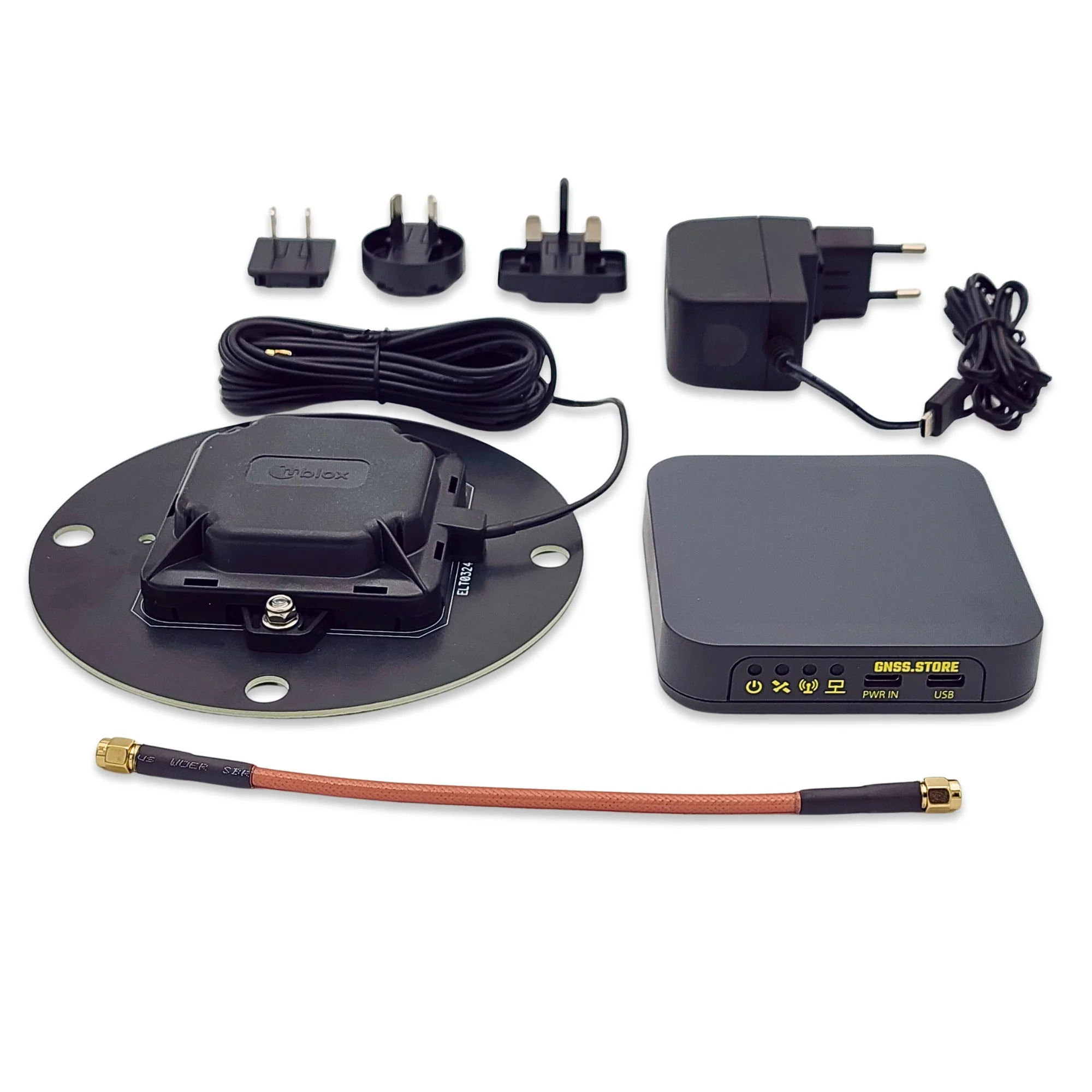

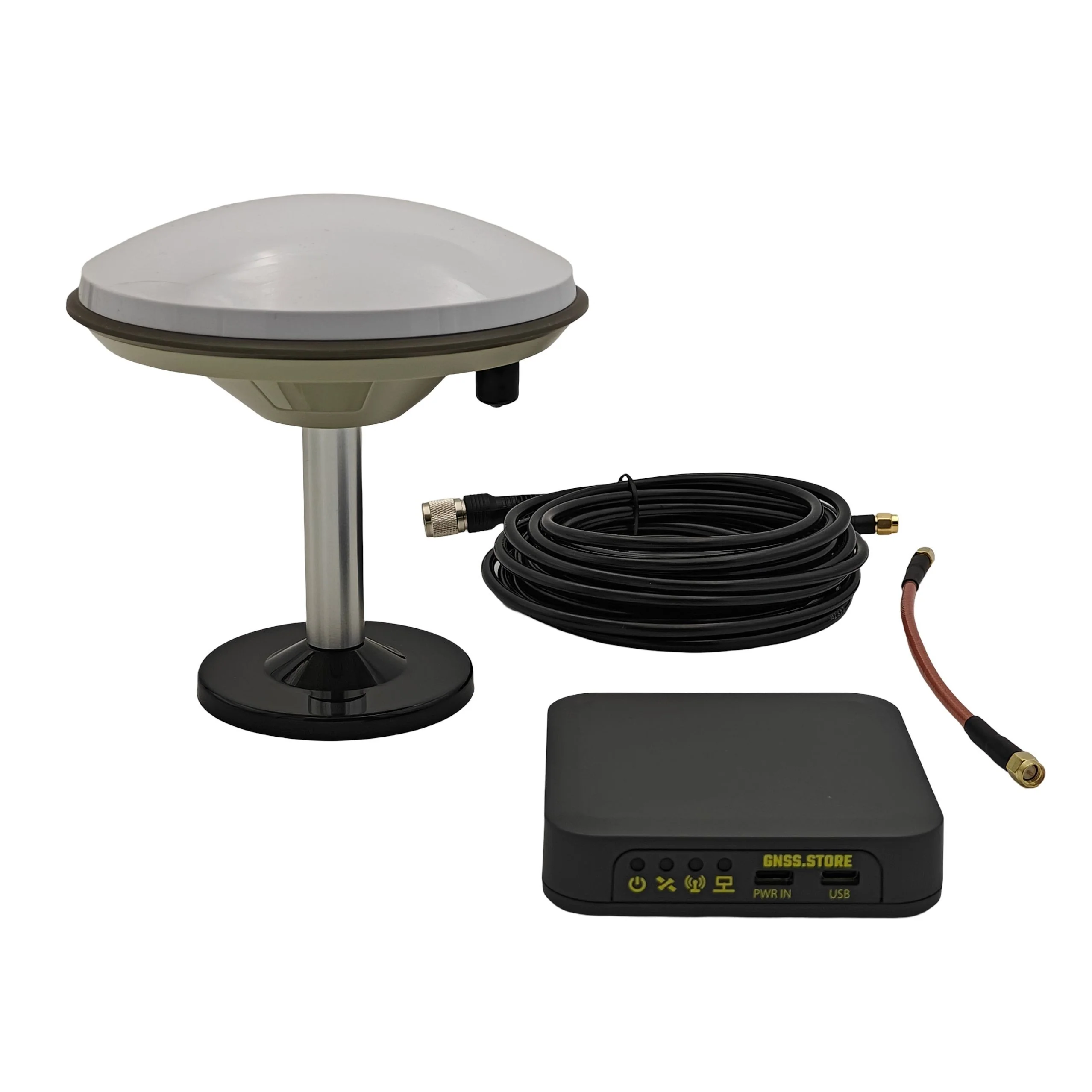

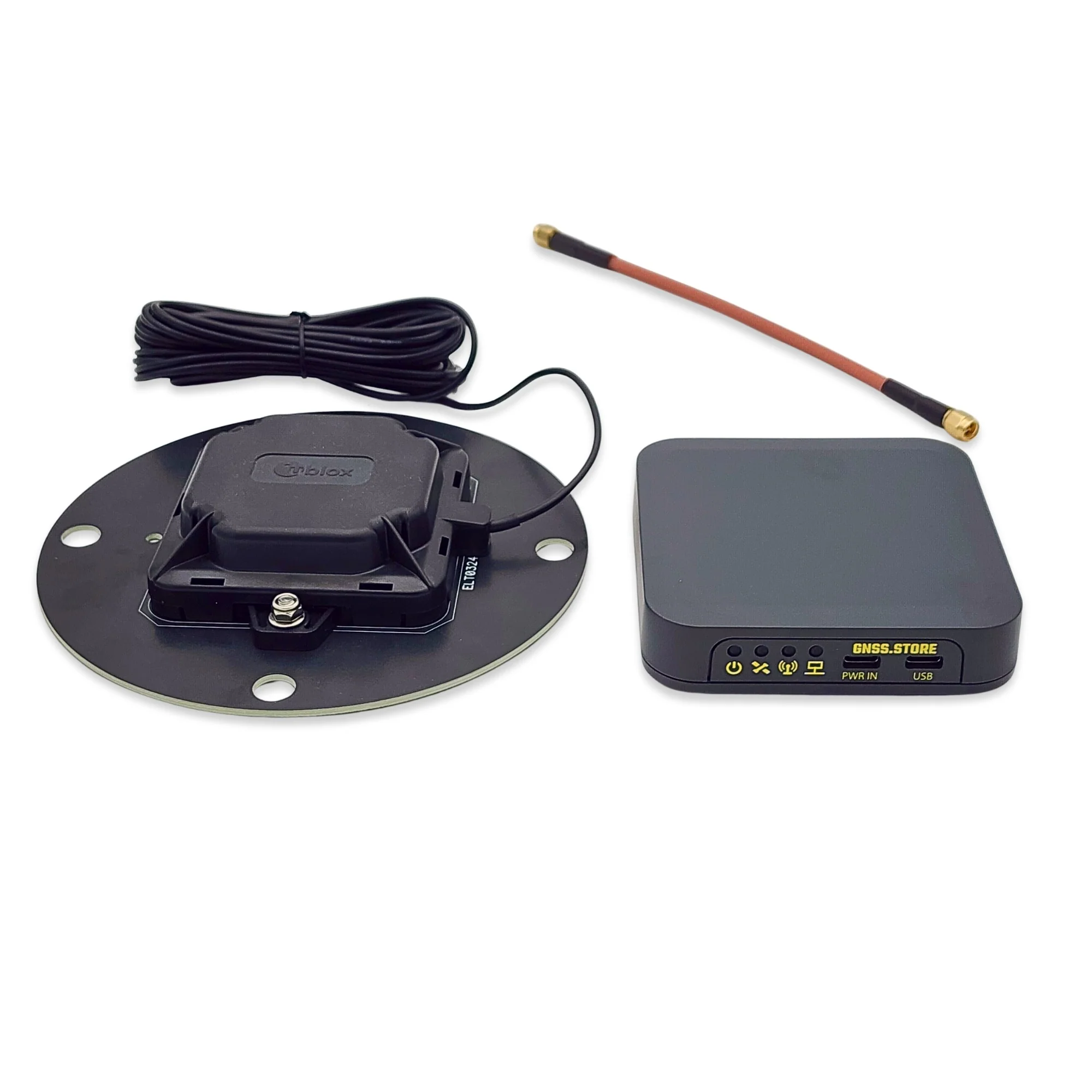

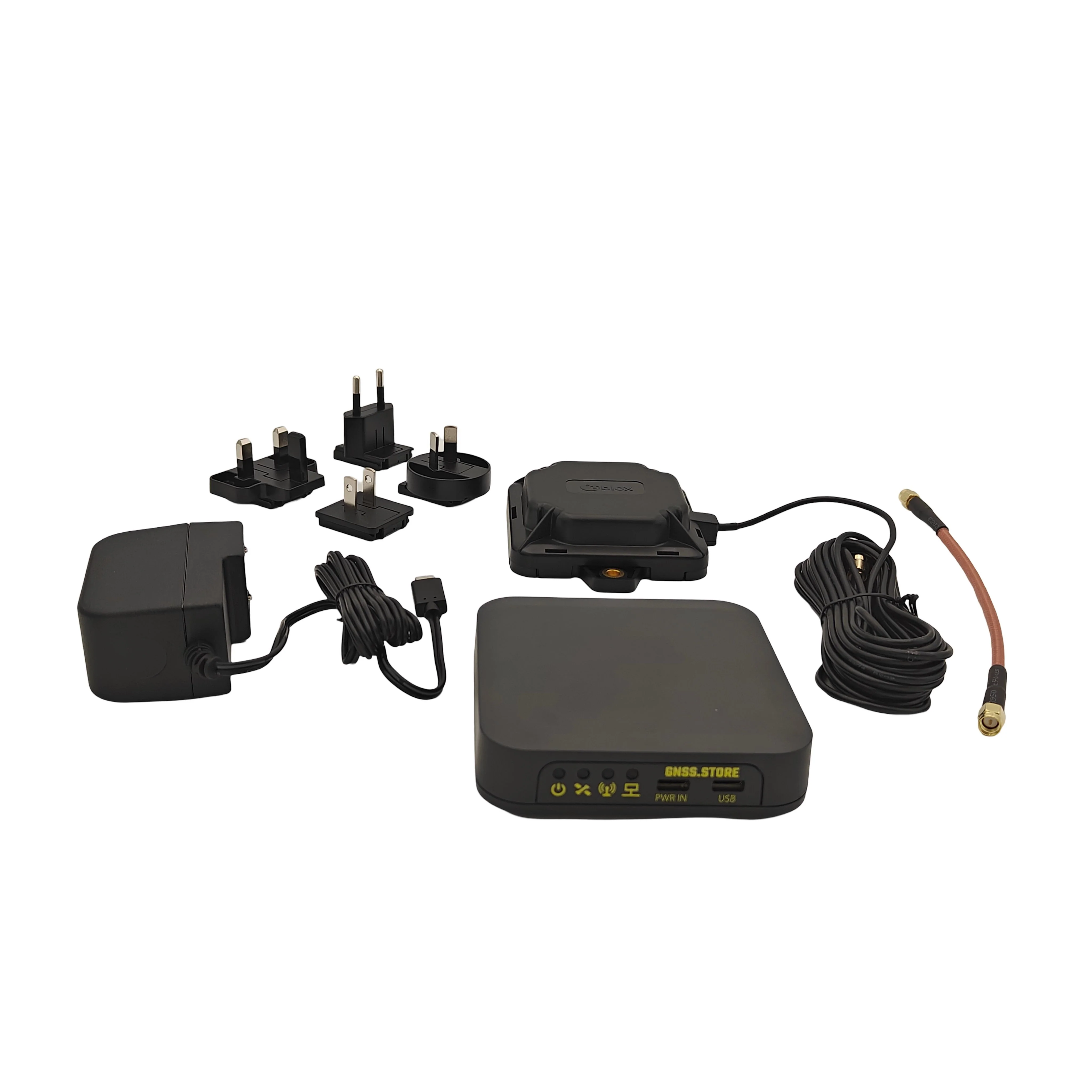

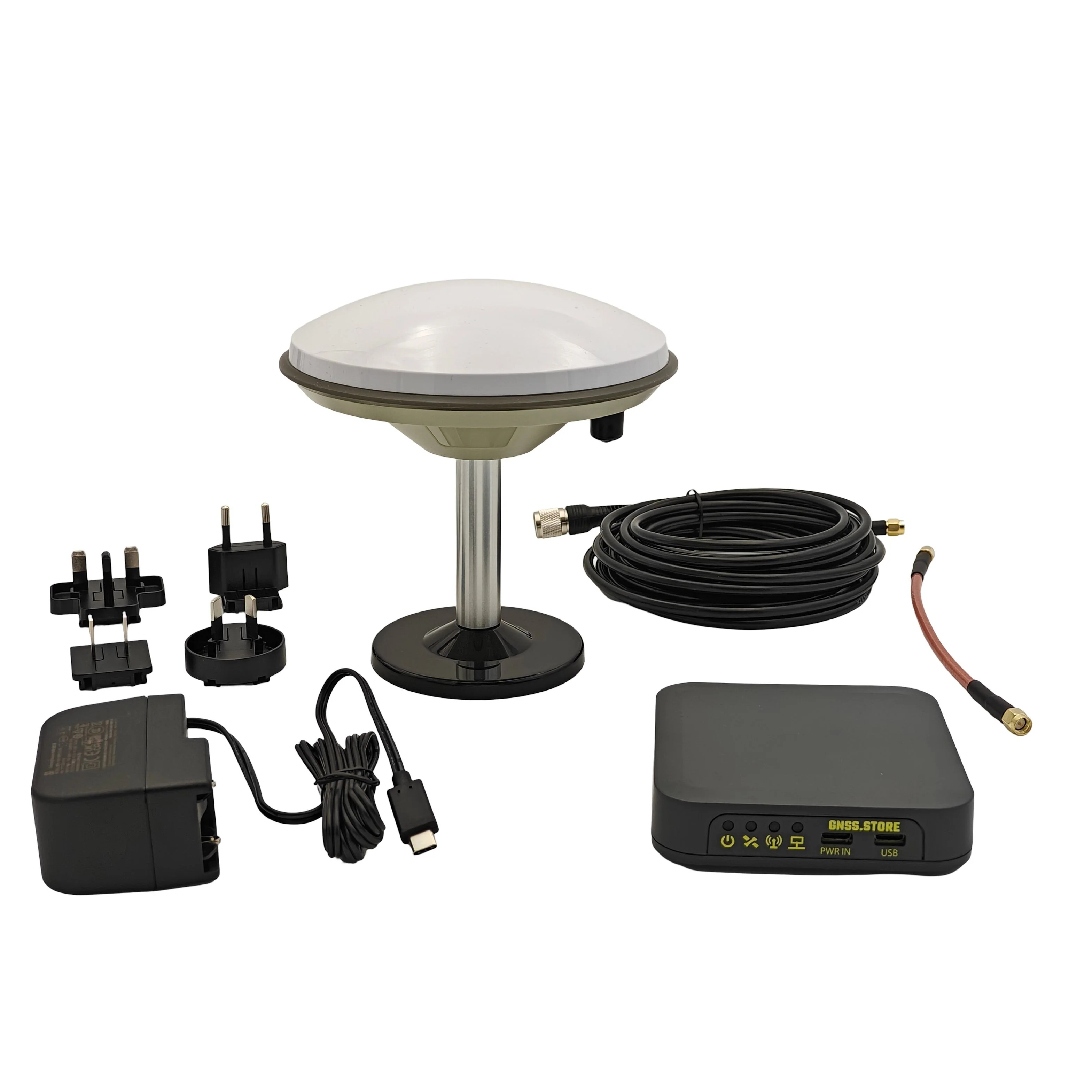

Onocoy M20 Budget GNSS Miner with support for other decentralized networks (built-in RF splitter)

M20 All-constellation Multi-frequency High Precision RTK GNSS receiver

M20 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports BDS-2 B1I, B2I, B3I; BDS-3 B1I, B1C*, B2a, B2b*, B3I; GPS: L1 C/a, L1c*, L2, L5; Glonass G1, G2; Galileo E1, E5a, E5b, E6*; QZSS L1 C/a, L1C, L2, L5, L6*(CLAS); NavIC I5*; SBAS* L1 C/A. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M20 is well suited for autonomous driving, lane-level navigation, drones and robots.

---

• Fanless setup, passive cooling
• Build-in RF splitter for direct connection in multi-receiver setup
• Raspberry-PI RPI Zero 2 W
• RP3A0 SoC, ARM Cortex-A53@1GHz
• WiFi 2.4 GHz 802.11n
• ELT_RtkBase full-featured software
• ELT_RTKBase User Guide
• microSD card 32GB with pre-installed software and documentation
• GNSS antenna input with SMA connector
• USB C receiver port with access to 4 Mosiac serial ports, USB C power in port
• Power LED, GNSS LED, Internet LED and NTRIP LED
• Dimensions 100x100x22.5 mm
• Weight: 140 gr.
• Fully assembled and ready to use
