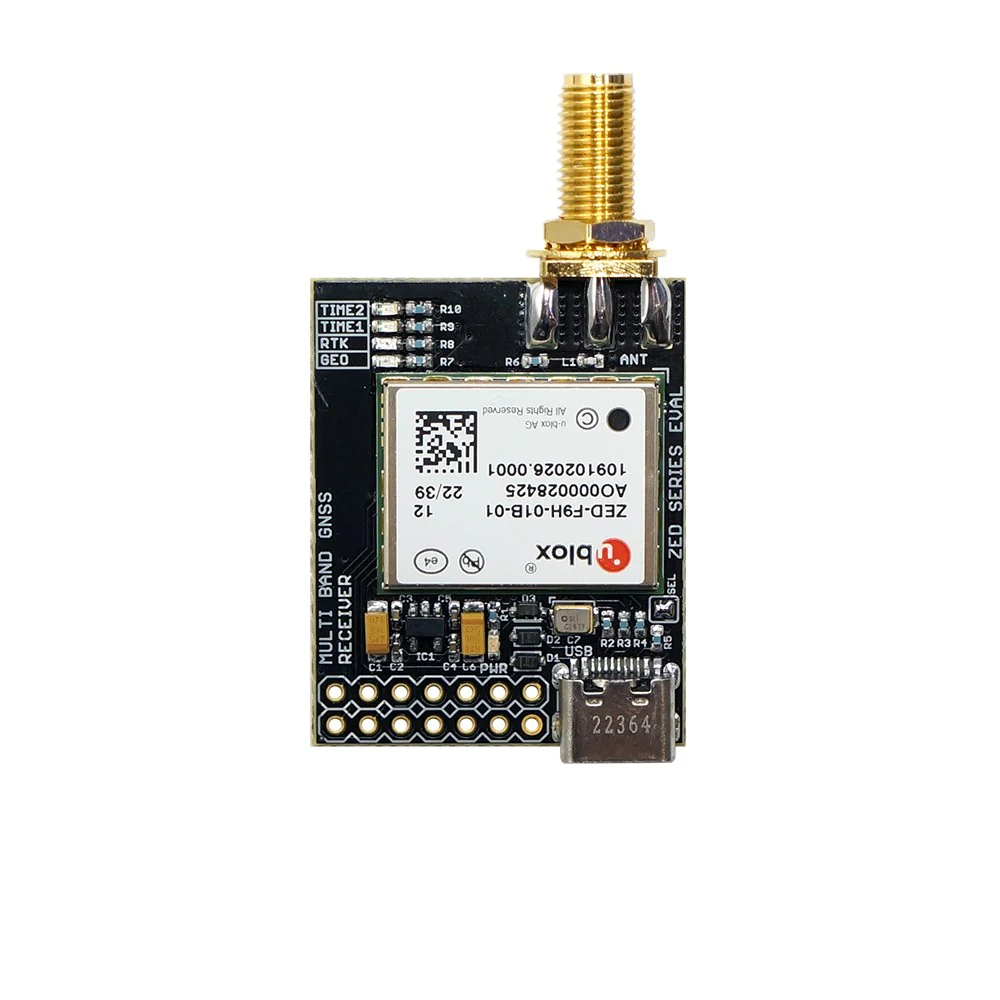

ZED-F9H high precision GNSS USB C module with SMA for heading applications
ZED-F9H High Precision GNSS receiver EVAL module USB, I2C, UART, SPI with SMA antenna connectors designed for heading applications. Designed for easy integration in your system or robots.
The ZED-F9H module is designed to provide best possible heading information to applications where precise attitude is of greatest importance. The ZED-F9H acts as an accompanying module, and requires a ZED-F9P module to be mounted on the same vehicle. In this setup, ZED-F9P provides the precise GNSS position, and at the same time acts as a moving base to the ZED-F9H module, which in turn outputs the precise attitude information.
As the heading information is based on GNSS it does not require pre-calibration, thus ensuring easy production, integration and operation. The precise heading information is always available, even in stand-still situations.
ZED-F9H is designed to lower the system cost for a heading application and comes with minimal e-BOM. Thanks to its small package size, light weight, and low power consumption it is well-suited for mass market adoption.
- On-board low noise 3.3V voltage regulator with noise 2nV/Hz

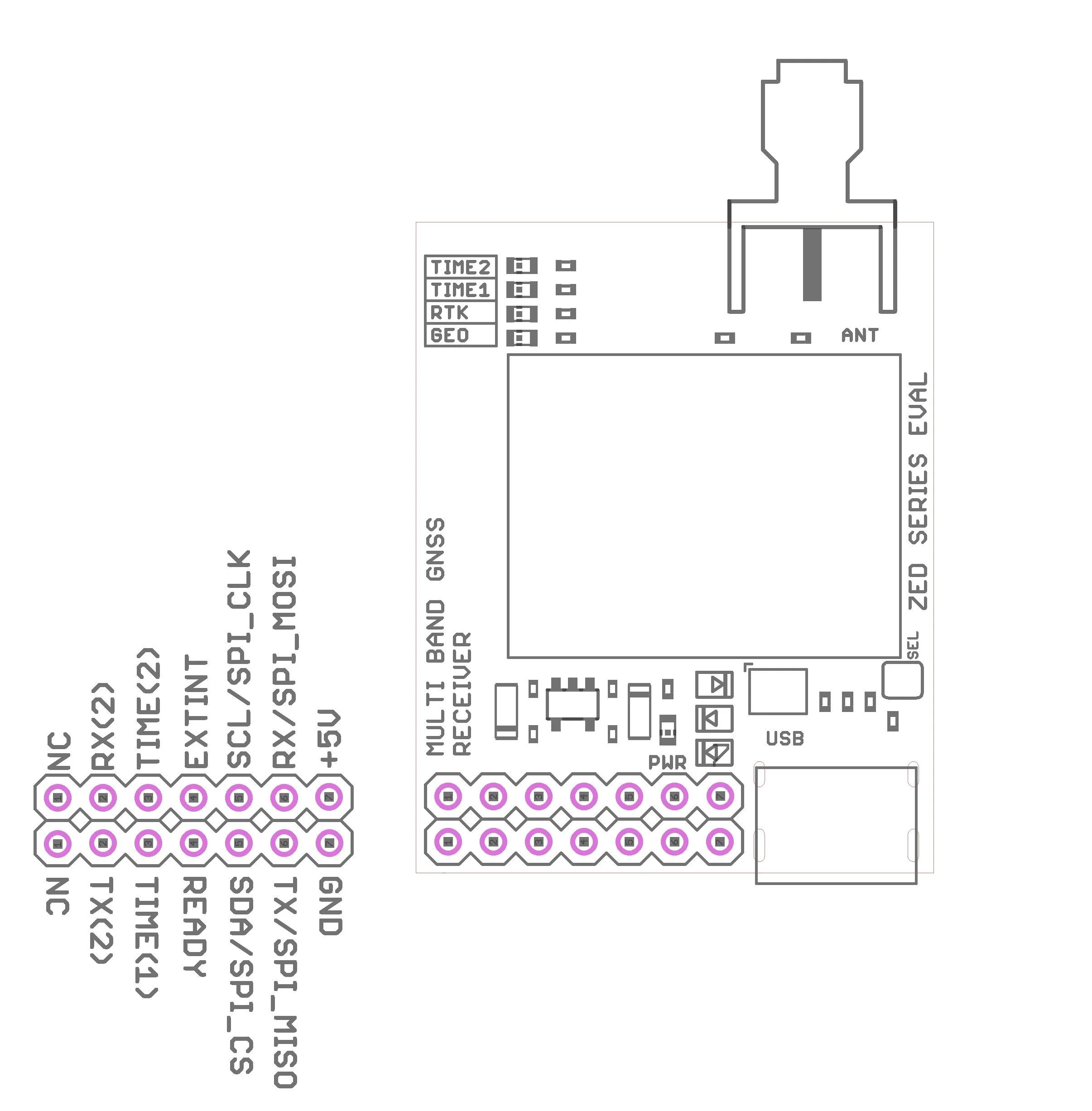

- USB C connector , I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interfaces
- SMA edge antenna connectors
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED
- Backup supercapacitor

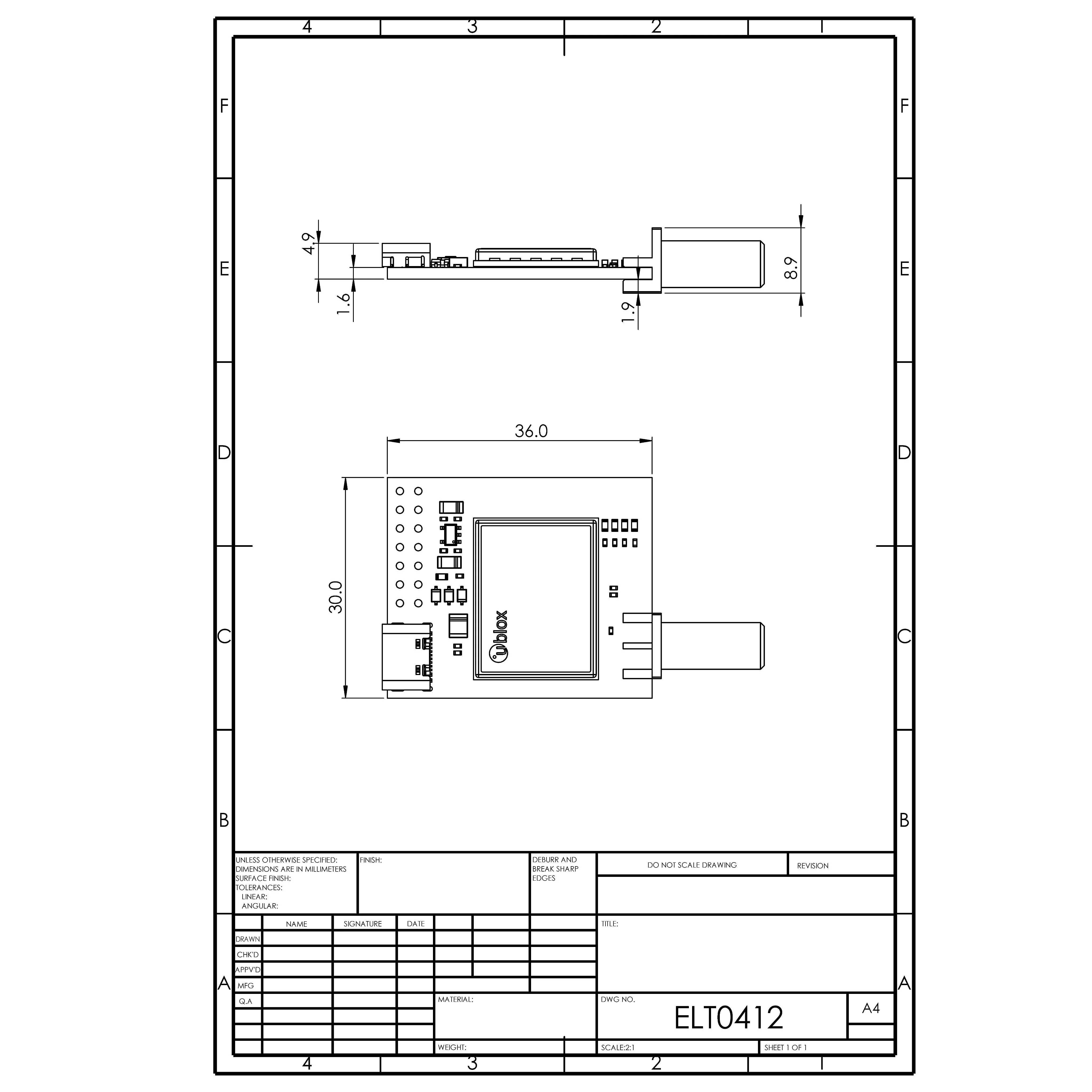

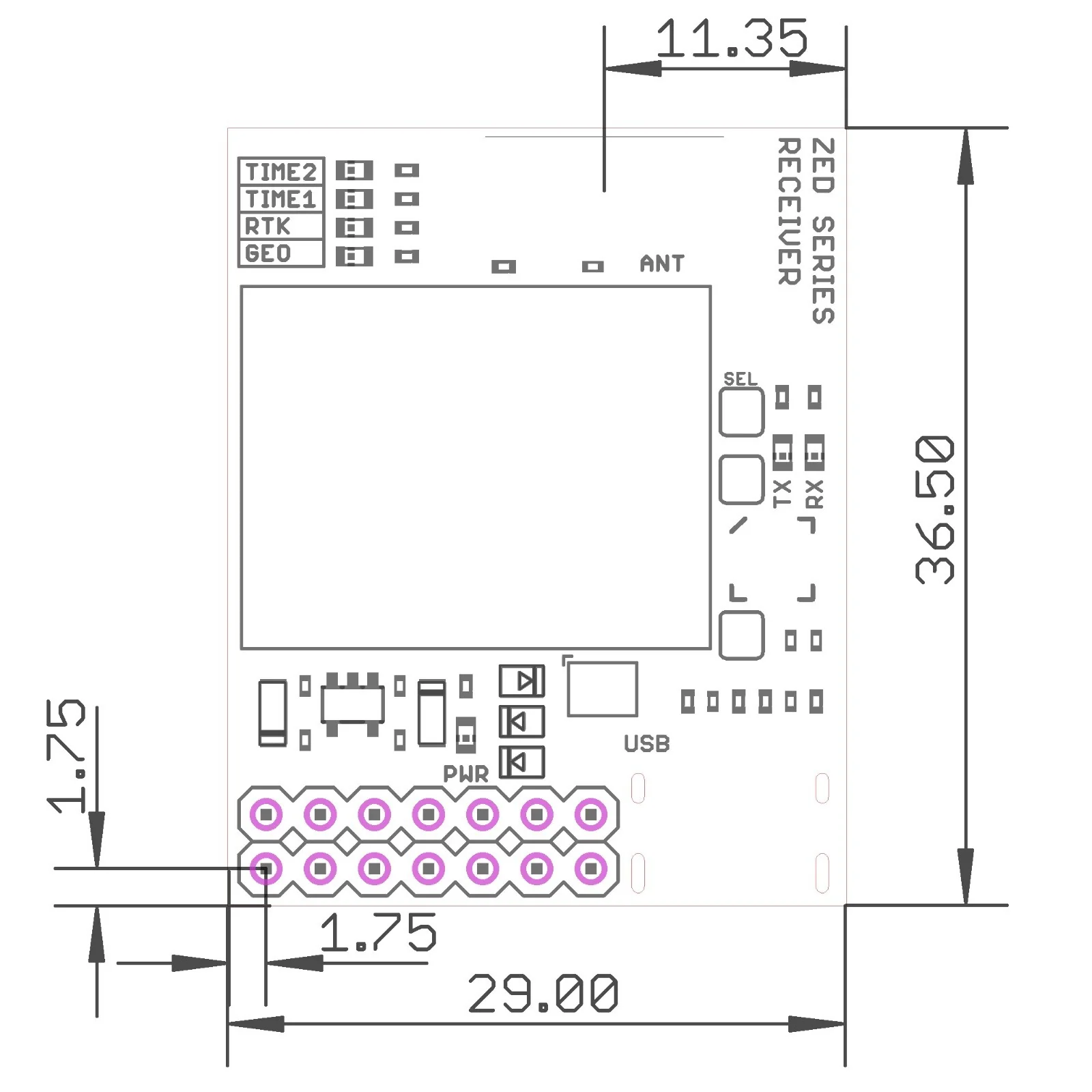

- Dimensions: 36x30 mm without SMA
- Weight: 7,9 gr
- Fully assembled and ready to use
- 14 Holes with pitch 2.54mm
- USB type C connector
Original: $221.20
-65%$221.20
$77.42More Images
