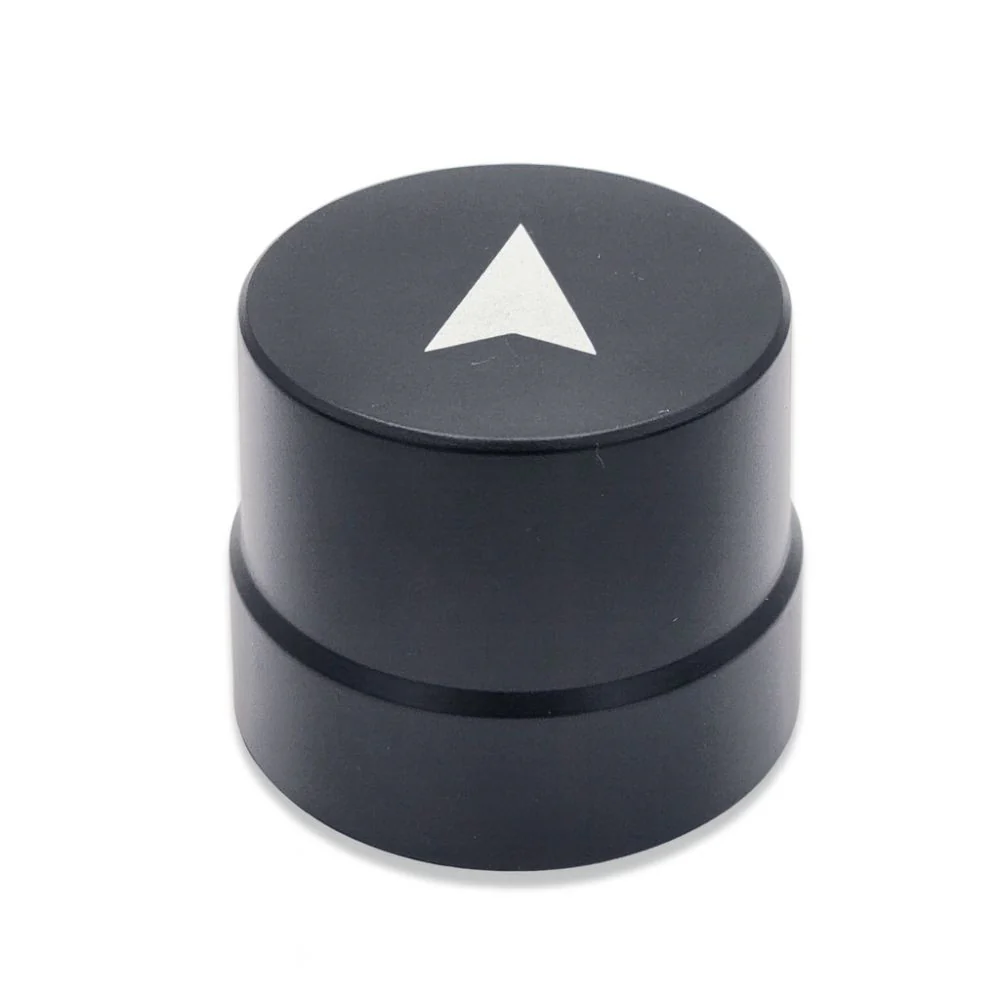

UM980 ultraLight RTK GNSS Smart Antenna
UM980 ultraLight GNSS Smart Antenna for precision and RTK positioning
UM980 ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful Unicore UM980 module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.
Lightweight, powerful, and dependable — the UM980 ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand top-tier performance without compromise.
Overview
With its advanced multi-band RF front-end, the UM980 ultraLight Smart Antenna is capable of simultaneously tracking all four major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data.
Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and built-in interference suppression, the UM980 ultraLight provides reliable, high-precision positioning where traditional receivers struggle.
Device Features:
- Based on NebulasIV GNSS SoC with integrated RF, base band, and high precision algorithm
- Supports robust high-precision positioning via RTK, PPP, and Galileo HAS correction services.
- All-system multi-frequency RTK engine and advanced RTK technology
- Independent tracking of different frequencies and 60dB narrow band anti-jamming technology
- Low Noise Amplifier (LNA) integrated in antenna
- High Gain: 28 dB typ. from antenna
- Axial ratio: 3 dB max.
- Tight Phase Center Variation (PCV)
- Power supply: 5 VDC
- Two optional UART
- Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:
- Dimension: Ø50x41 mm
- Weight: 34 gr.
- IP Rating: IP55
- Operating Temperature: -10 °C ~ +60 °C

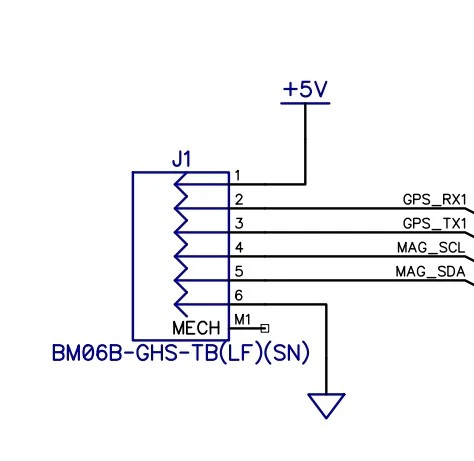

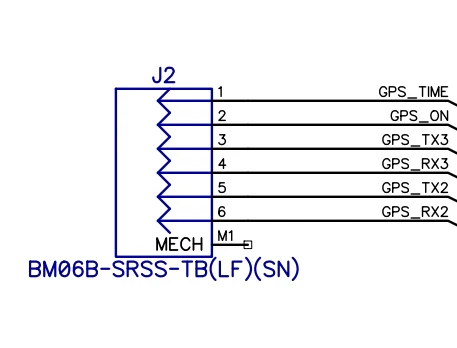

- Connector type: JST SH 6 pin, JST GH 6 pin

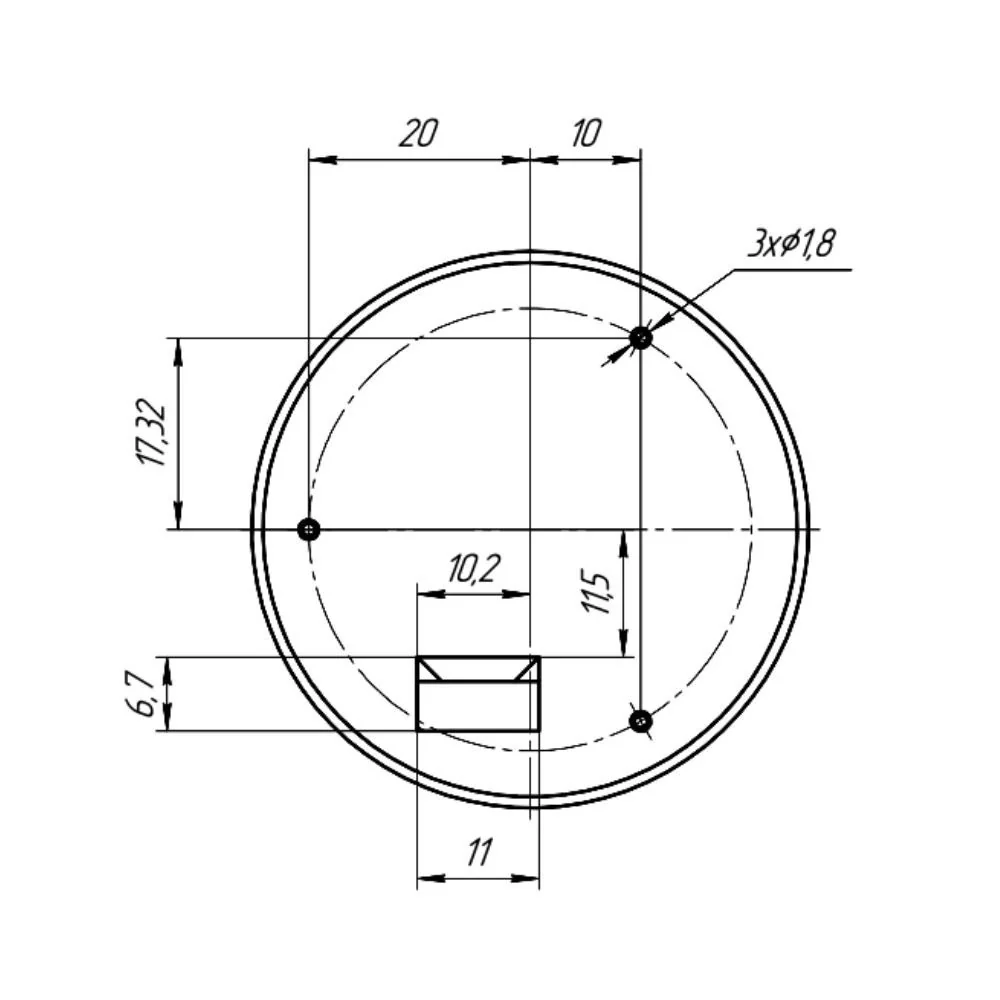

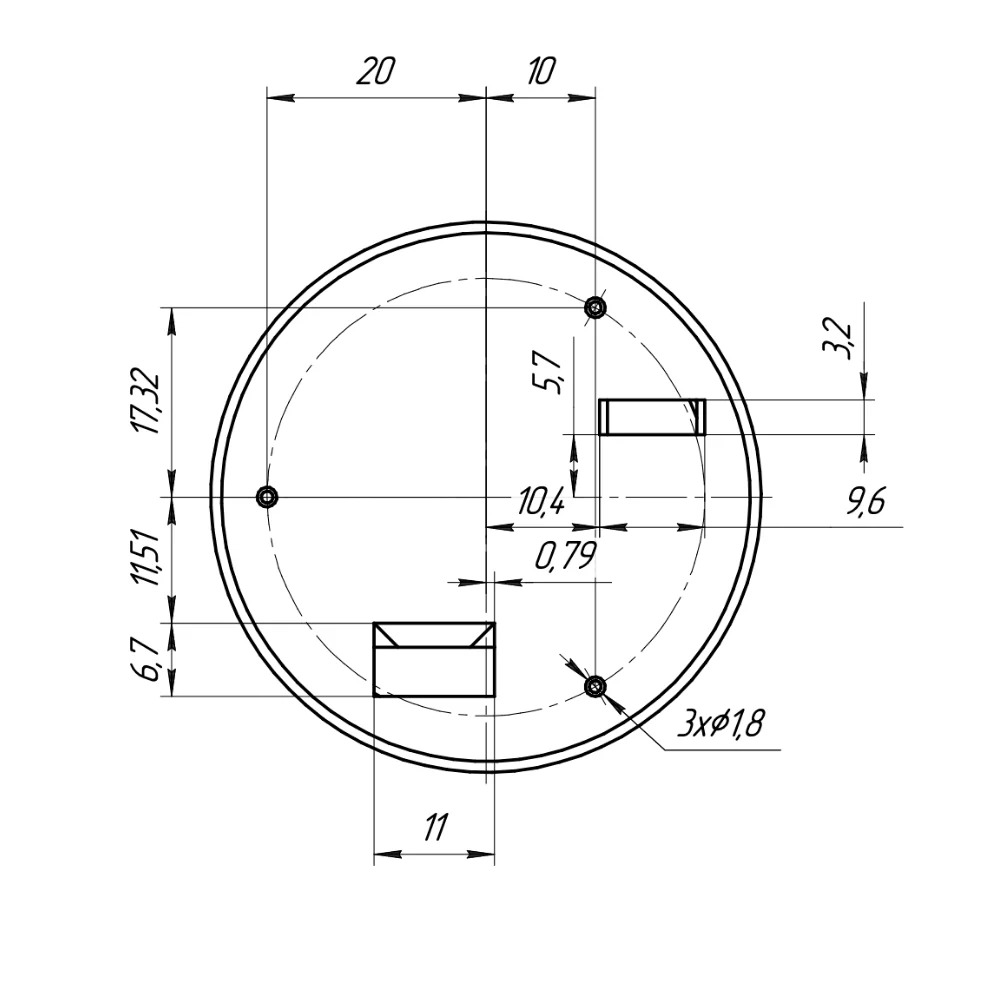

- Mounting Options: Waterproof 3M double-sided tape, Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, sealed, and ready for use
Kit included:
- Smart antenna – 1 piece
- Cable JST GH 1.25 6 pin to 6 pin 200mm – 1 piece
- Cable JST SH 1.0 6 pin to 6 pin 100 mm – 1 piece
- Waterproof 3M double-sided tape – 1 piece
- Screws 2.5x6 – 3 pieces
Original: $337.62
-65%$337.62
$118.17More Images
UM980 ultraLight RTK GNSS Smart Antenna
UM980 ultraLight GNSS Smart Antenna for precision and RTK positioning
UM980 ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful Unicore UM980 module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.
Lightweight, powerful, and dependable — the UM980 ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand top-tier performance without compromise.
Overview
With its advanced multi-band RF front-end, the UM980 ultraLight Smart Antenna is capable of simultaneously tracking all four major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data.
Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and built-in interference suppression, the UM980 ultraLight provides reliable, high-precision positioning where traditional receivers struggle.
Device Features:
- Based on NebulasIV GNSS SoC with integrated RF, base band, and high precision algorithm
- Supports robust high-precision positioning via RTK, PPP, and Galileo HAS correction services.
- All-system multi-frequency RTK engine and advanced RTK technology
- Independent tracking of different frequencies and 60dB narrow band anti-jamming technology
- Low Noise Amplifier (LNA) integrated in antenna
- High Gain: 28 dB typ. from antenna
- Axial ratio: 3 dB max.
- Tight Phase Center Variation (PCV)
- Power supply: 5 VDC
- Two optional UART
- Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:
- Dimension: Ø50x41 mm
- Weight: 34 gr.
- IP Rating: IP55
- Operating Temperature: -10 °C ~ +60 °C
- Connector type: JST SH 6 pin, JST GH 6 pin
- Mounting Options: Waterproof 3M double-sided tape, Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, sealed, and ready for use
Kit included:
- Smart antenna – 1 piece
- Cable JST GH 1.25 6 pin to 6 pin 200mm – 1 piece
- Cable JST SH 1.0 6 pin to 6 pin 100 mm – 1 piece
- Waterproof 3M double-sided tape – 1 piece
- Screws 2.5x6 – 3 pieces
