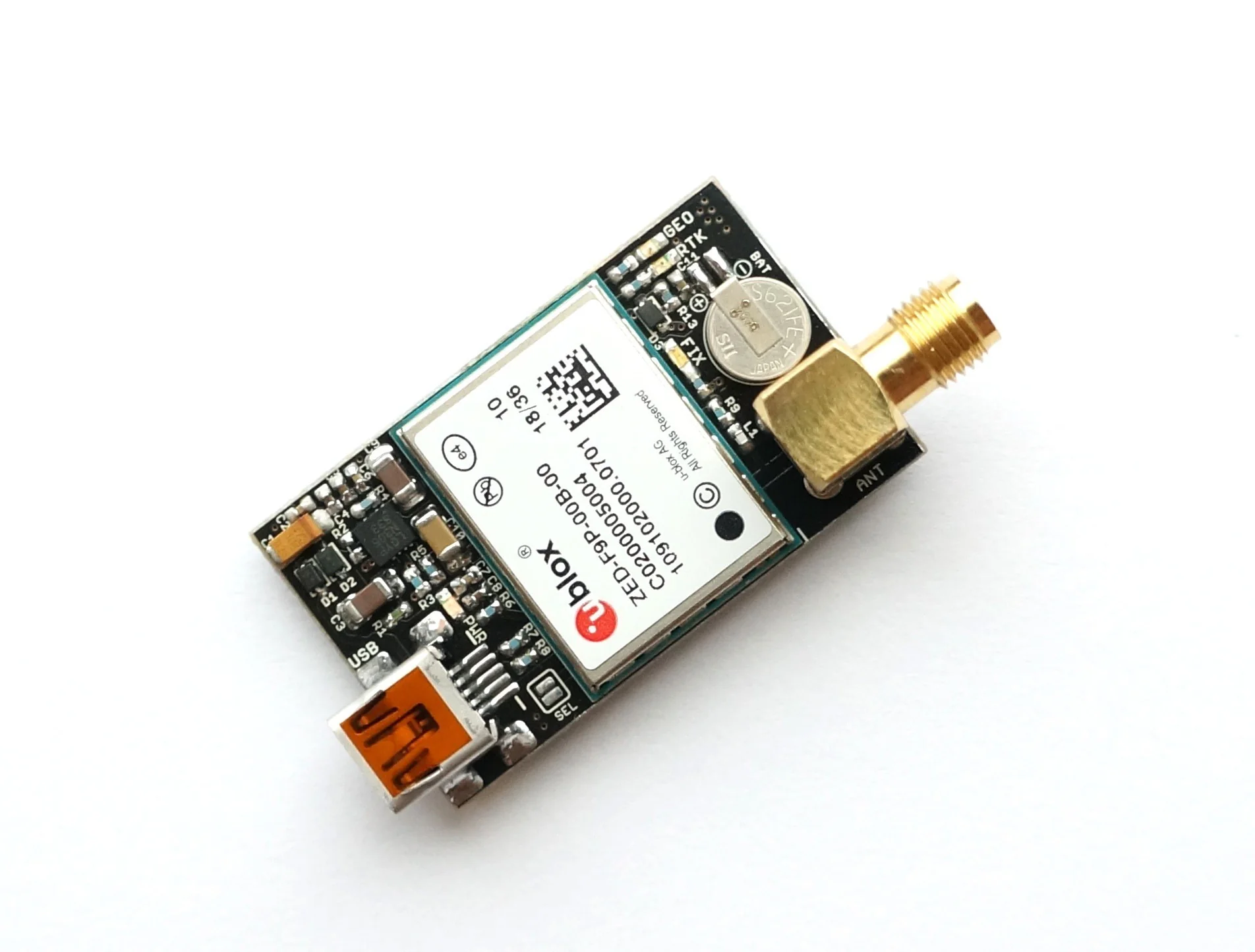

ZED-F9H high precision GNSS module for heading applications: SMA, USB
ZED-F9H High Precision GNSS receiver EVAL module USB, I2C, UART, SPI with SMA antenna connectors designed for heading applications. Designed for easy integration in your system or robots.
NEW USB type C Pin to Pin compatible version available ELT0398
The ZED-F9H module is designed to provide best possible heading information to applications where precise attitude is of greatest importance. The ZED-F9H acts as an accompanying module, and requires a ZED-F9P module to be mounted on the same vehicle. In this setup, ZED-F9P provides the precise GNSS position, and at the same time acts as a moving base to the ZED-F9H module, which in turn outputs the precise attitude information.
As the heading information is based on GNSS it does not require pre-calibration, thus ensuring easy production, integration and operation. The precise heading information is always available, even in stand-still situations.
ZED-F9H is designed to lower the system cost for a heading application and comes with minimal e-BOM. Thanks to its small package size, light weight, and low power consumption it is well-suited for mass market adoption.
- On-board low noise 3.3V voltage regulator with noise 2nV/Hz
- USB, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interfaces
- SMA edge antenna connectors
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED
- Backup supercapacitor
- Dimensions: 38x22 mm without SMA
- Weight: 9 gr.
- Fully assembled and ready to use

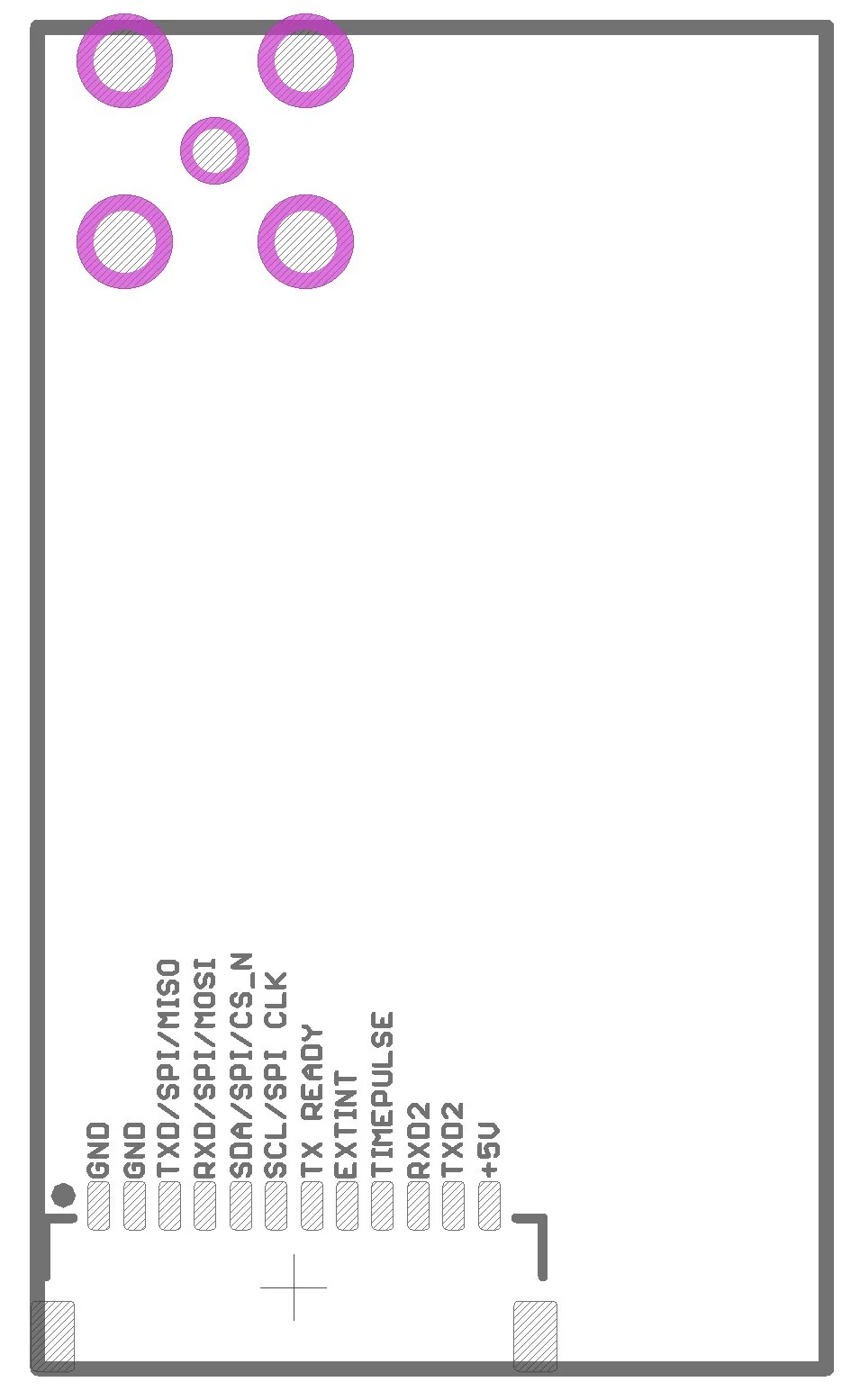

- 14 Holes with pitch 2.54mm
Original: $227.02
-65%$227.02
$79.46More Images
