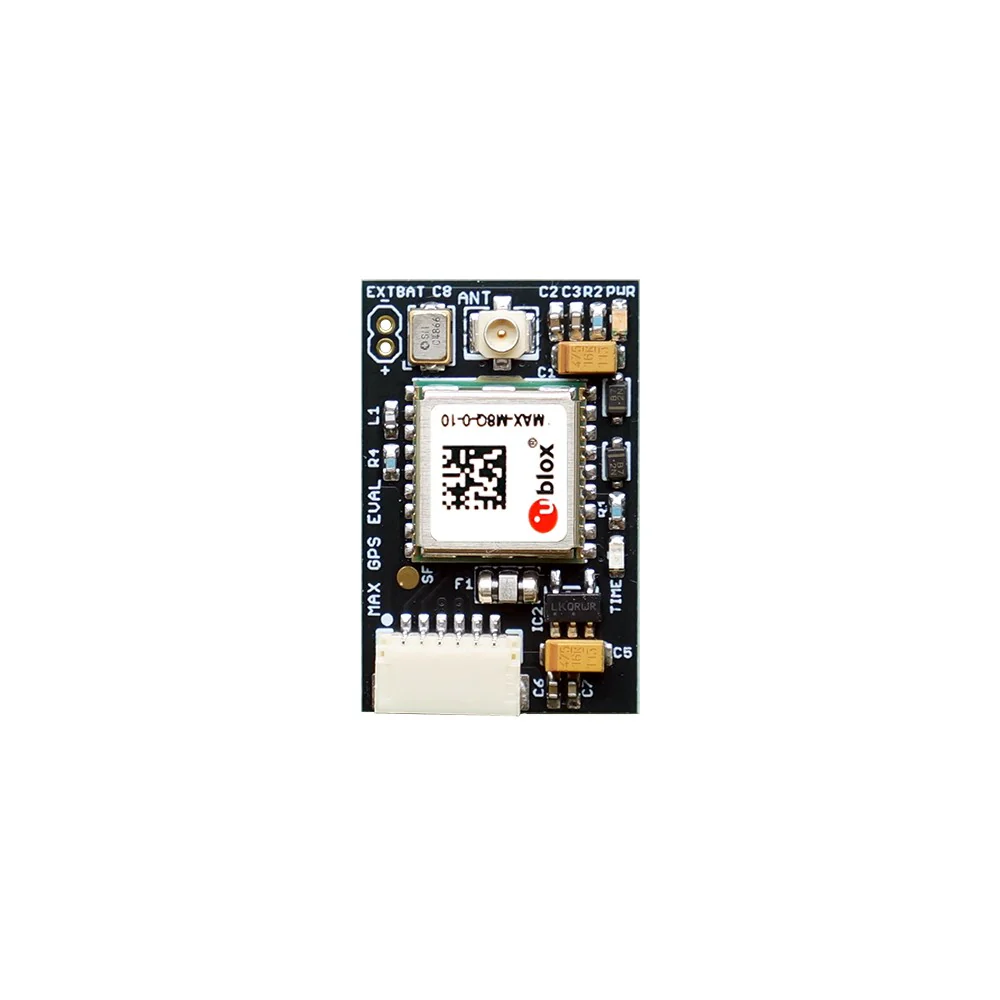

MAX-M8Q GPS GLONASS BeiDou 18Hz receiver with UF.L connector
MAX-M8Q u-blox GPS/QZSS GLONASS BeiDou 18Hz receiver Reference Board with UF.L (IPEX) antenna connector for your mini UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The MAX-M8 series of standalone concurrent GNSS modules is built on the exceptional performance of the u-blox M8 engine in the industry proven MAX form factor. With dual-frequency RF front-end, the u-blox M8 concurrent GNSS engine is able to intelligently use the highest amount of visible satellites from two GNSS (GPS, GLONASS and BeiDou) systems for more reliable positioning. The MAX-M8 series is ideal for performance driven applications. The MAX-M8 series provides high sensitivity and minimal acquisition times while maintaining low system power.
The MAX-M8Q provides best performance for passive and active antennas designs. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. The MAX-M8 combines a high level of integration capability with flexible connectivity options in a miniature package. This makes MAX-M8 perfectly suited for industrial applications with strict size and cost requirements. The MAX-M8Q is also halogen free (green) which makes it also a perfect solution for consumer applications. The DDC (I2C compliant) interface provides connectivity and enables synergies with most u-blox cellular modules
- 72-channel u-blox M8 concurrent GNSS receiver GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1, SBAS L1 C/A: WAAS, EGNOS, MSAS
- Sensitivity: Tracking -167dBm Nav –164 dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- UART(Tx, Rx), and I2C interface
- UF.L (I-PEX) antenna connector
- Active GNSS antenna support
- Time pulse LED
- Supercapacitor for HOT module start

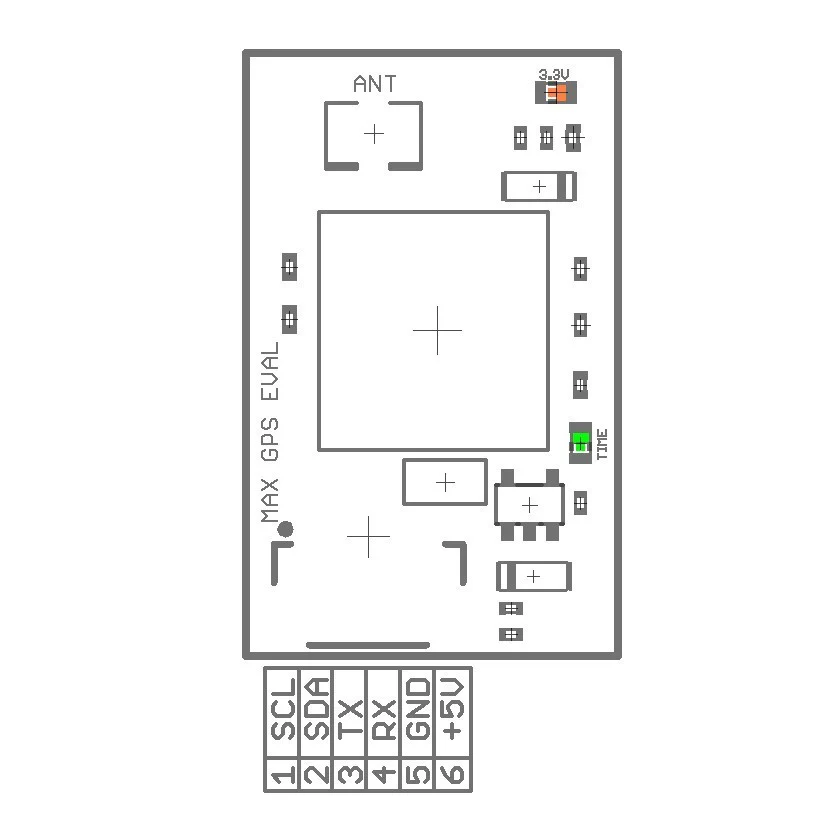

- 6 pin JST SH connectors
- Dimensions: 24x16 mm
- Weight: 2.3 gr.
- Fully assembled and ready to use
- u-blox u-center Evaluation Software
Original: $58.20
-65%$58.20
$20.37More Images
