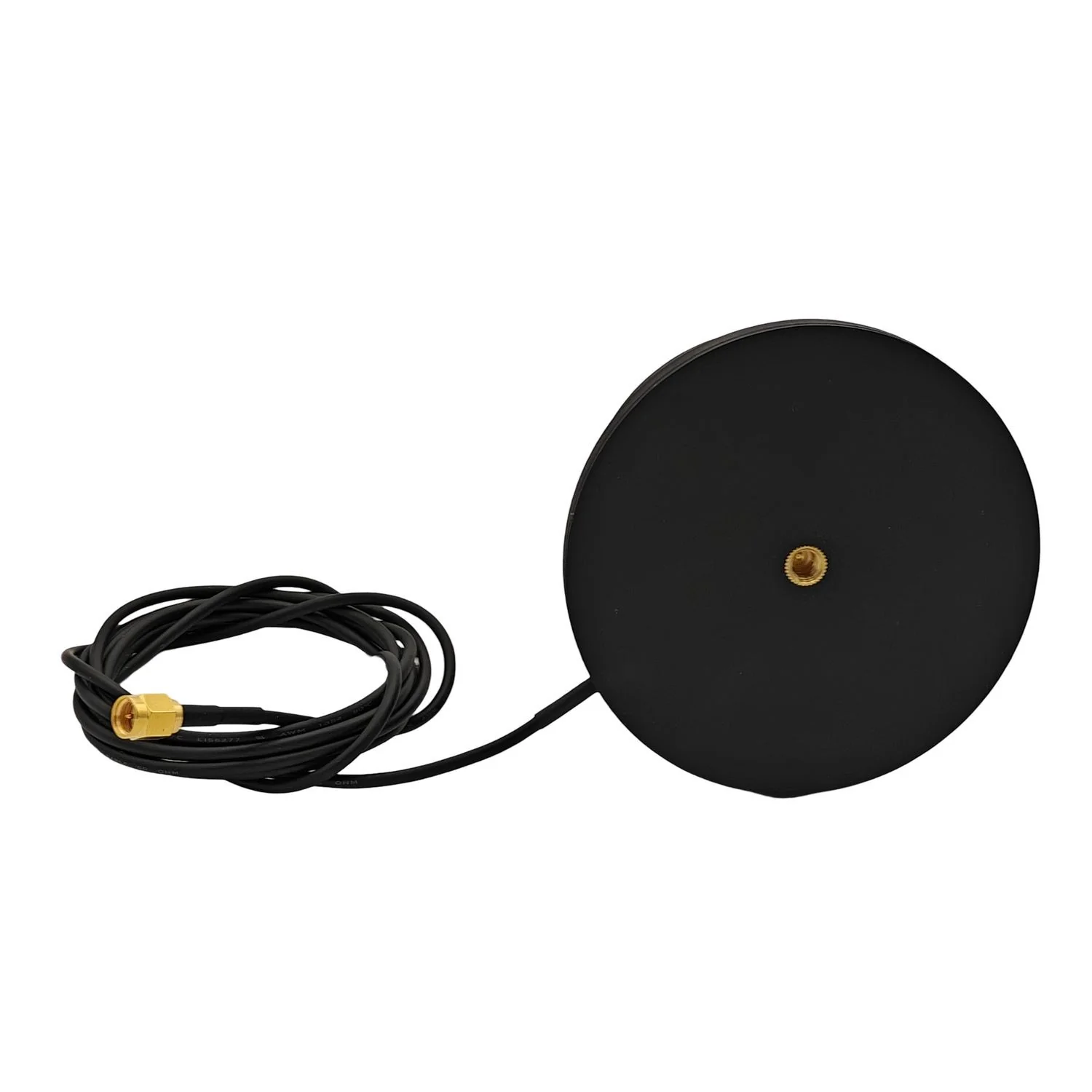

AllBand GNSS Cross Dipole Active GNSS Antenna description:

This active multi-band GNSS antenna that has been carefully designed to work well on the full GNSS spectrum. This allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments.

The AllBand antenna has excellent performance across the full bandwidth of the antenna and its design has an even gain across the hemisphere giving almost excellent, broad axial ratio which in turn makes it resilient to multipath rejection and excellent phase centre stability. The LNA used in the AllBand antenna ensures excellent out of band rejection and provides excellent positioning stability and reliability of GNSS signals.

Signal Received:

GPS L1/L2/L5
GLONASS G1/G2/G3
GALILEO E1/E5a/E5b/E6
BDS B1I/B2I/B3I/B1C/B2a/B2b
SBAS L1/L5
QZSS L1/L2/L5/L6
IRNSS I5

Multi-Band GNSS Cross Dipole Active GNSS Antenna

Amplifiers characteristics:

Typ. LNA Gain: 25 dB
LNA Noise Figure: Max. 3.4 dB
Axial Ratio: 1 - 1.5 dB
Max. Output VSWR: 1.5
Polarization: RHCP
Voltage range: 1.8 - 5 V
Typ. current: 20 mA

Typical Applications Include:

Autonomous Driving
Precision Positioning for Robotics
Precision Agriculture
Inventory Management & Container tracking
Telematics & Asset Tracking
Timing Accuracy Synchronization

Certifications & Compliance

Anti-jamming
CE Certified
RoHS & REACH Compliant

Mechanical data:

Weight: 106 gr. with cable
Dimensions: Ø92 x 65mm
Cable: 1500mm RG-174
Connector: SMA(M) Straight
Housing color: black
Housing material: ASA, FDM printed
Mounting: 1/4" photographic tripod, 5/8" threaded survey pin, 3M adhesive tape mount
Protection: IP65

This MultiBand antenna is the latest addition to an ongoing product road map of high precision antennas. For RTK applications when used on the base and/or the rover, the MultiBand antenna can achieve genuine cm-level accuracy.

This is a custom-designed product with an enclosure 3D printed from ASA using FDM technology. Customization of the enclosure, cable lengths, and connector types is available upon request. Minimum order quantities apply.
